High gain 1710-1990MHz N Female Connector base station antenna

Product introduction

1. Ultra‑High 18dBi Gain for Long‑Range Coverage

Delivers 18dBi gain, significantly boosting signal strength for both transmission and reception. Perfect for covering long distances, rural areas, or corridors where weak signals need reliable amplification.

2. Narrow 7° Vertical Beamwidth + High 65° Horizontal Beamwidth

The 65° horizontal beam covers a wide sector, while the 7° vertical beam focuses energy precisely to reduce interference and extend range. Ideal for point‑to‑multipoint base station applications.

3. Excellent VSWR (≤1.5) & Front‑to‑Back Ratio (≥25dB)

Low VSWR minimizes reflected power and maximizes efficiency. ≥25dB front‑to‑back ratio suppresses unwanted rear signals, improving system co‑channel interference rejection and overall link quality.

4. Rugged All‑Weather Construction

Dimensions 1200×170×60mm, weight 7kg. Rated wind velocity 60m/s (216 km/h), making it suitable for high‑wind coastal or mountain installations. N‑type female connector provides reliable, weather‑sealed RF connection.

5. High Power Handling & Wide Bandwidth

Supports up to 100W input power and covers 170MHz bandwidth (1710‑1990MHz), compatible with 4G LTE Band 1, Band 3, Band 4, Band 9, Band 10, Band 33, etc. Also suitable for DCS1800, PCS1900, and other 1700‑1990MHz systems.

Application Scenarios

●4G/LTE Base Station Sector Antenna – Mounted on towers or rooftops to provide 65° sector coverage for suburban or urban macro cells.

●Rural Broadband & Long‑Range WiMAX – High 18dBi gain enables point‑to‑multipoint links over several kilometers in remote areas.

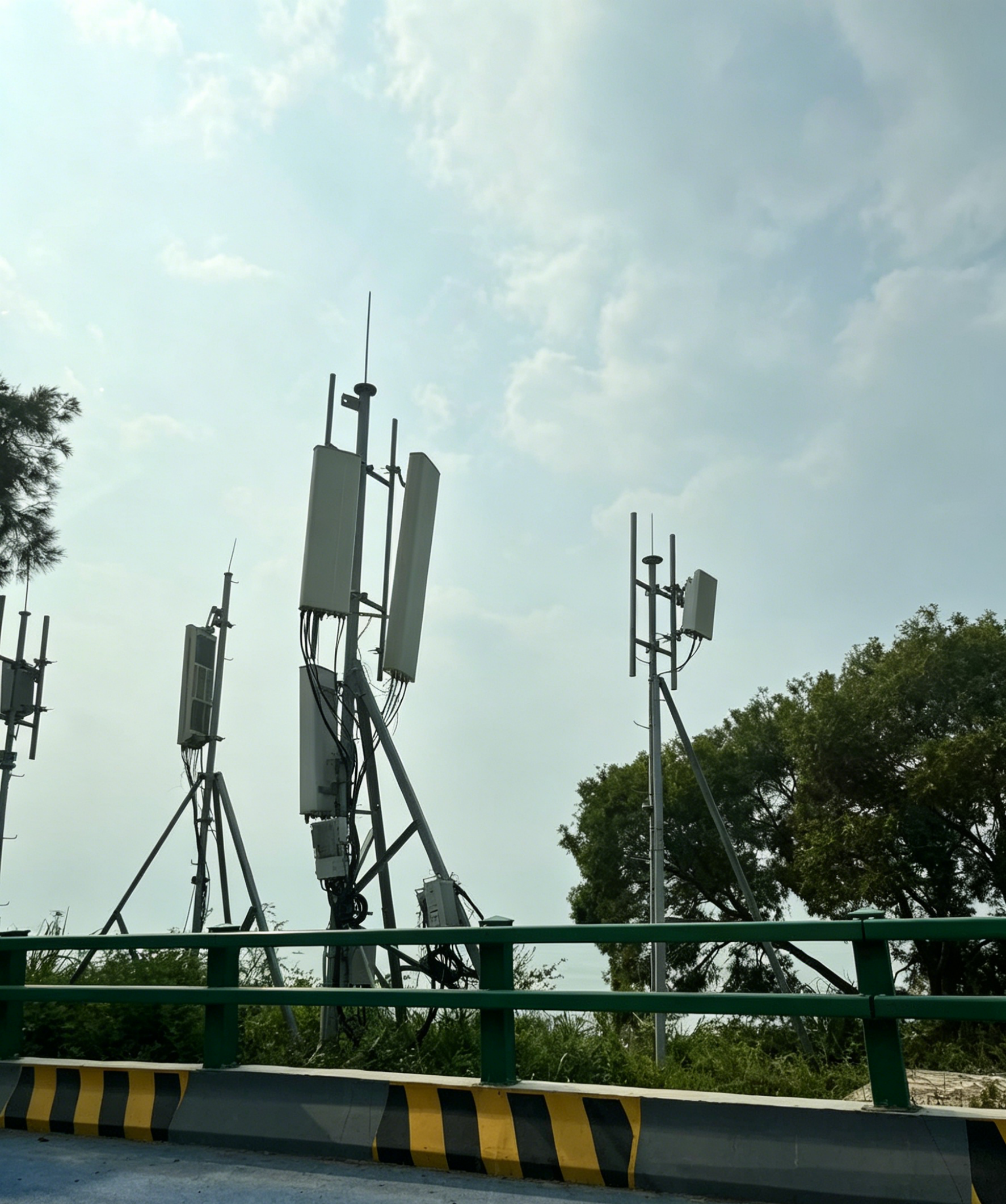

●Railway & Highway Communication Systems – Installed along rail lines or highways to create continuous corridor coverage for train‑to‑ground or roadside units.

●Private LTE/5G NR (Sub‑2GHz) Networks – Used in mines, ports, factories, and campuses for dedicated industrial wireless networks operating in 1.7‑1.99GHz.

●Test & Temporary Event Coverage – Deployed as a high‑gain directional panel for field testing, disaster recovery, or temporary large‑event base stations.

FAQ

Q: What frequency bands does the GL-1800BP65D18 cover?

A: It covers 1710‑1990MHz continuously, including DCS1800 (1710‑1880MHz), PCS1900 (1850‑1990MHz), and 4G LTE bands 1, 2, 3, 4, 9, 10, 33, etc.

Q: What is the gain and beamwidth?

A: Gain is 18dBi. Horizontal beamwidth is 65° (sector coverage), vertical beamwidth is 7° (very narrow, focused for long distance).

Q: What connector type is used?

A: The antenna comes with an N‑type female (N Female) connector, standard for outdoor base station antennas.

Q: Can this antenna handle high wind?

A: Yes, it is rated for wind velocity up to 60m/s (approx. 216 km/h or 134 mph). It weighs 7kg and measures 1200mm long, so proper mounting is essential.

Q: What is the maximum input power?

A: Maximum power input is 100W, suitable for typical BTS, repeater, or high‑power transmitter applications.

Q: What mounting mast diameter is compatible?

A: The antenna fits masts with diameter Φ50‑70mm (50‑70mm). Mounting brackets are typically included or purchased separately.
