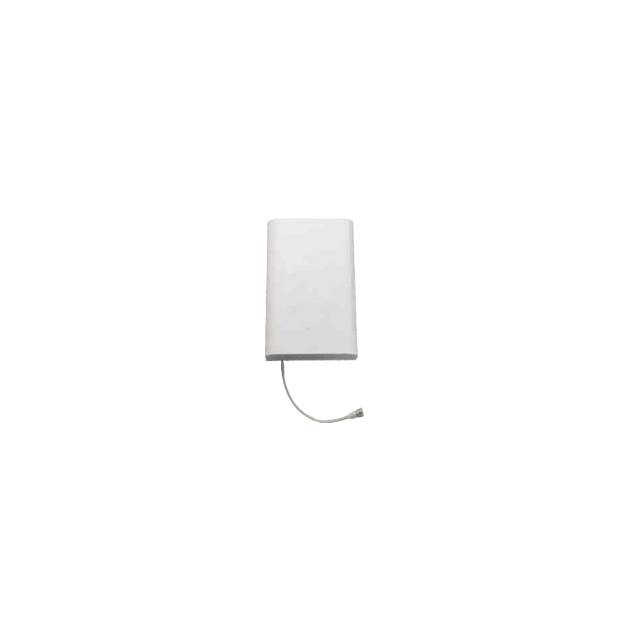

GL-DYJ350BFG
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Panel Antennas | |
GL-DYJ350BFG | |
Electrical Index | |
Frequency-MHz | 350-370 |
Bandwidth-MHz | 20 |
Gain-dBi | 5 |
Vertical Beamwidth-° | 120 |
Horizontal Beamwidth-° | 85 |
VSWR | ≤1.6 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 50 |
Length-m | 0.32x0.2x0.07 |
Weight-Kg | 0.9 |
Rated Wind Velocity-m/s | 60 |
Connector | N Female |
Remarks | Indoor Wall mount installation |
Panel Antennas | |
GL-DYJ350BFG | |
Electrical Index | |
Frequency-MHz | 350-370 |
Bandwidth-MHz | 20 |
Gain-dBi | 5 |
Vertical Beamwidth-° | 120 |
Horizontal Beamwidth-° | 85 |
VSWR | ≤1.6 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 50 |
Length-m | 0.32x0.2x0.07 |
Weight-Kg | 0.9 |
Rated Wind Velocity-m/s | 60 |
Connector | N Female |
Remarks | Indoor Wall mount installation |
