GL-0738BKSL-M
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

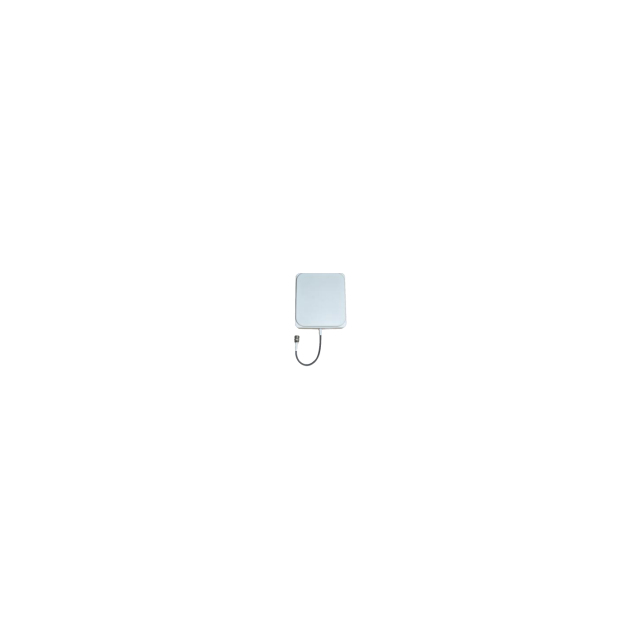

Item | Directional Flat Antenna |
PN | GL-0738BKSL-M |
Frequency Range-MHz | 698-960/1350-1551/1710-2700/3300-3800 |
Bandwidth | E: 80/70/60/45 H: 90/75/65/50 |
Passive Intermodulation | @2×43dBm ≤-150dBc |
VSWR | ≤2.0 |
Gain-dBi | 5.5/7/8/7 |
RF Connector | 1*4.3-10F |
Dimensions-mm | 165×146×48 |
Item | Directional Flat Antenna |
PN | GL-0738BKSL-M |
Frequency Range-MHz | 698-960/1350-1551/1710-2700/3300-3800 |
Bandwidth | E: 80/70/60/45 H: 90/75/65/50 |
Passive Intermodulation | @2×43dBm ≤-150dBc |
VSWR | ≤2.0 |
Gain-dBi | 5.5/7/8/7 |
RF Connector | 1*4.3-10F |
Dimensions-mm | 165×146×48 |
