GL0642B
Asialeren
8517710000
10pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency range (MHz) | 61～698 | 69～960 | 169～2700 | 330～4200 |
Polarization | Vertical | |||
Gain (dBi) | 6 | 7 | 8 | 9 |
Horizontal beam width (°) | 90 | 80 | 75 | 55 |
Typical Vertical beam width (°) | 75 | 80 | 70 | 50 |
Front-to-back ratio (dB,avg.) | 14 | 16 | 25 | 20 |
Impedance (Ω) | 50 | |||
VSWR | ≤ 1.8 | |||
Intermodulation IM3 (2×43dBm carrier) | -153dBc | -153dBc | -153dBc | -153dBc |
Maximum power (W) | 50 | |||
Lighting protection | DC Ground | |||
Mechanical specifications | ||||
Connector | 4.3-10 Female or N Female | |||
Exposed cable size (cm) | 30 | |||
Connector position | Bottom | |||
Antenna size (mm) | 306*250*86 | |||
Packing size (mm) | 455*260*113 | |||
Weight (kg) | ≤ 1.5 | |||
Radome material | ABS | |||
Radome color | White (RAL 9003) | |||
Operating temperature (℃) | -40～60 | |||
Application | Outdoor | |||
Mechanical tilt (°) | Adjusting Elevation 0～20/Adjusting Turn ±45 | |||
Rated wind velocity (m/s) | 40 | |||
Suitable pole diameter (mm) | Φ35~Φ125 | |||
Mounting kit | JM-VB8 | |||

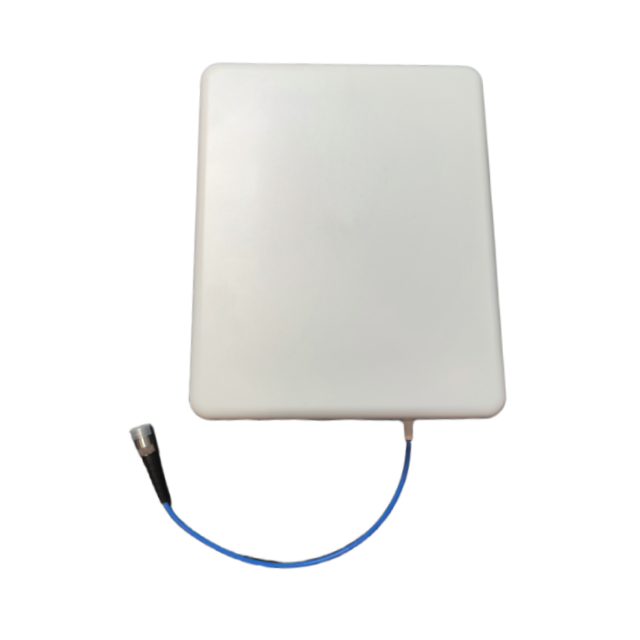

Product introduction
1. Wide Frequency Coverage (617–4200MHz)
Supports multiple frequency bands including low, mid, and high bands, making it compatible with 2G, 3G, 4G LTE, 5G, and WLAN systems.
2. Optimized Directional Performance
With 6–9dBi gain and adjustable beamwidth, the antenna ensures focused signal transmission and improved coverage efficiency.
3. Stable Signal & Low Interference
Features VSWR ≤1.8 and excellent front-to-back ratio, minimizing signal loss and interference for reliable communication.
4. Durable Outdoor Design
Built with high-quality ABS radome and lightning protection (DC ground), ensuring long-term performance in harsh environments.
5. Flexible Installation & Adjustment
Supports adjustable tilt (0–20°) and rotation (±45°), compatible with pole diameters Φ35–Φ125mm for easy deployment.
Application Scenarios
Cellular base stations (2G/3G/4G/5G networks)
Outdoor wireless coverage systems
Industrial park and campus network deployment
Rural broadband and signal extension
WLAN and IoT communication systems
FAQ
Q: What frequency range does this antenna support?
A: It covers 617MHz to 4200MHz across multiple bands.
Q: What is the gain of this antenna?
A: The gain ranges from 6dBi to 9dBi depending on frequency bands.
Q: Is this antenna suitable for 5G networks?
A: Yes, it supports 5G as well as 2G, 3G, and 4G systems.
Q: What type of connectors are available?
A: It supports 4.3-10 Female or N Female connectors.
Q: Can it be used outdoors?
A: Yes, it is designed for outdoor applications with weather-resistant materials.
Q: Does it support adjustable installation?
A: Yes, it allows tilt adjustment (0–20°) and rotation (±45°).
