GL-X0727BJA-M
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

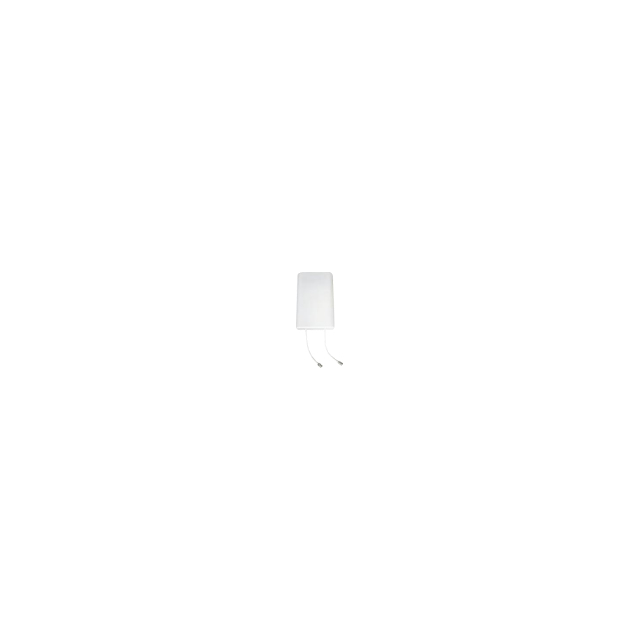

Item | Directional Flat Antenna |
PN | GL-X0727BJA-M |
Frequency Range-MHz | 698-960/1710-2700 |
Bandwidth | E:75/70 H:70/50 |
Passive Intermodulation | @2×33dBm ≤-140dBc |
VSWR | ≤1.8 |
Gain-dBi | 7/8 |
RF Connector | 2* N-F |
Dimensions-mm | 325×205×70 |
Item | Directional Flat Antenna |
PN | GL-X0727BJA-M |
Frequency Range-MHz | 698-960/1710-2700 |
Bandwidth | E:75/70 H:70/50 |
Passive Intermodulation | @2×33dBm ≤-140dBc |
VSWR | ≤1.8 |
Gain-dBi | 7/8 |
RF Connector | 2* N-F |
Dimensions-mm | 325×205×70 |
