GL1200V14
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Technical Specifications | |
Frequency Range | 1200-1400MHz |
Polarization | Vertical |
V.S.W.R | ≤1.5 |
Gain | 14dBi |
Horizontal Beam width | 30° |
Vertical Beam width | 30° |
F/B Ratio | ≥25dB |
Input Impedance | 50Ω |
Max Power | 50W |
Lighting Protection | DC ground |
Mechanical | |
Connector | N female |
Installation | Pole |
Antenna Dimensions | 390×390×60mm |
Weight | 1.5kg |
Radiator Material | Aluminum |
Radome material | ABS |
Radome color | White |
Working Temperature | -40°C to +65 °C |

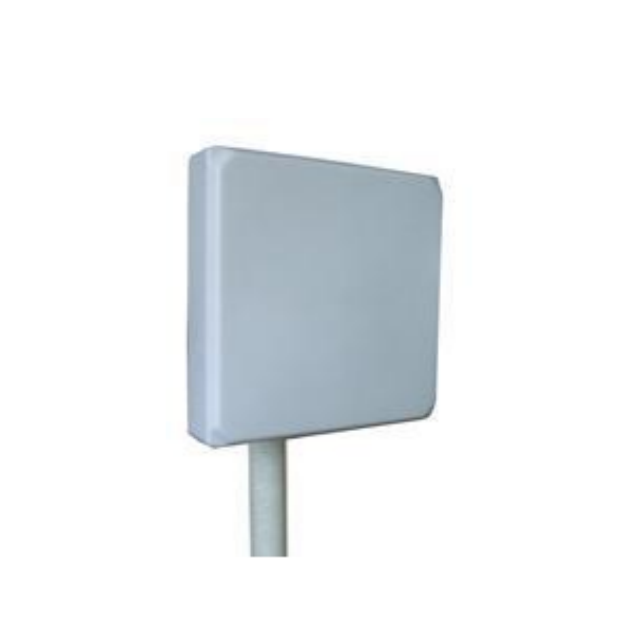

Product Introduction
1. High Gain for Long-Distance Communication
This panel antenna delivers 14dBi high gain, significantly improving signal strength and transmission distance. It is ideal for wireless links that require reliable long-range connectivity.
2. Optimized Frequency Range
Operating within the 1200–1400MHz frequency band, the antenna ensures stable and efficient signal transmission for various wireless communication systems.
3. Directional Signal Coverage
With a 30° horizontal and vertical beamwidth, the antenna focuses signal energy toward the target area, reducing interference and improving communication efficiency.
4. Durable Outdoor Design
The antenna features an ABS radome and aluminum radiator, providing strong weather resistance. It can operate reliably in harsh environments from -40°C to +65°C.
5. Easy Installation & Reliable Performance
Equipped with a standard N-female connector and pole-mount design, the antenna allows quick installation and stable performance in outdoor deployments.
Application Scenarios
Wireless communication systems
Long-distance data transmission
Industrial wireless networks
Base station signal coverage
Point-to-point wireless links

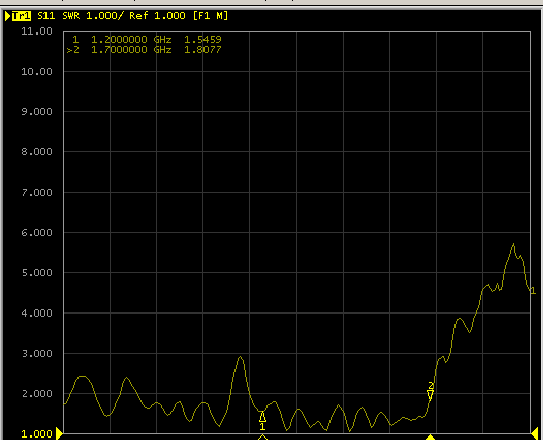

Testing
FAQ
Q:What frequency band does this panel antenna support?
A:This antenna operates within the 1200-1400MHz frequency range, suitable for various wireless communication applications.
Q:What is the gain of this antenna?
A:The antenna provides 14dBi gain, which enhances signal strength and improves long-distance communication performance.
Q: Is this antenna suitable for outdoor use?
A:Yes. The antenna features a weather-resistant ABS radome and aluminum radiator, making it suitable for outdoor environments.
Q:What connector type does the antenna use?
A:It uses a standard N-female connector, compatible with most RF cables and communication equipment.
Q:How is the antenna installed?
A:The antenna supports pole mounting, allowing easy installation on towers, poles, or masts.
Q:What is the maximum power handling?
A:The antenna supports up to 50W maximum input power.
