GLFMEC4
GLOBAL
8517710000
100pc
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 0-3 | |
Characteristic impedance(ohm) | 50 | |
VSWR | ≤1.22 | |
Insulation resistance | ≥5000MΩ | |
Dielectric Withstanding voltage | 1000V(rms) | |
Working Voltage | 500V(rms) | |
Contact resistance | Center conductor | ≤10mΩ |
Outer conductor | ≤5mΩ | |
Connector | FME | |
Apply cable | 5/50s/50D | |
Length(mm) | Ф5.2*31.5 | |
Durability | 500 Cycles | |
MATERIAL AND PLATING | ||
Body | Brass,nickel plated | |
Male center contacts | Brass,gold plated | |
Female center contacts | Beryllium copper,gold plated | |
Insulators | PTFE | |
Crimp ferrules | copper alloy,nickel plated | |
Temperature range | -65~+155℃ | |
Product introduction
1. Broad Frequency Range & Low VSWR
Operates from DC to 3GHz with a maximum VSWR of ≤1.22, ensuring excellent signal transmission and minimal reflection loss for RF systems.
2. High Reliability Electrical Performance
Features 50Ω characteristic impedance, insulation resistance ≥5000MΩ, dielectric withstanding voltage 1000V(rms), and working voltage 500V(rms). Center contact resistance ≤10mΩ, outer contact ≤5mΩ – stable and consistent.
3. Premium Materials & Plating
Body: brass with nickel plating; male center contact: brass with gold plating; female center contact: beryllium copper with gold plating; crimp ferrule: copper alloy nickel plated. Provides excellent conductivity, corrosion resistance, and durability.
4. Wide Temperature Range & Durable
Operates from -65℃ to +155℃, suitable for extreme environments. Mechanical durability of 500 cycles ensures long service life in frequent mating/unmating applications.
5. PTFE Insulation & Standard Cable Compatibility
Insulator made of PTFE (Teflon) for low loss and high temperature resistance. Designed for 5/50s/50D flexible cables, easy crimp assembly for field or factory termination.
Application Scenarios
RF Cable Assembly
Automotive Telematics
Base Station & Repeaters
Industrial Wireless Devices
Consumer Electronics
FAQ
Q: What type of connector is this?

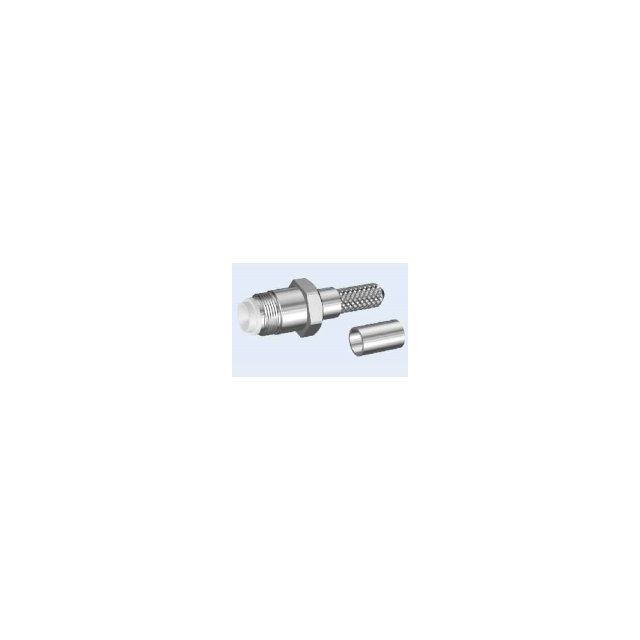

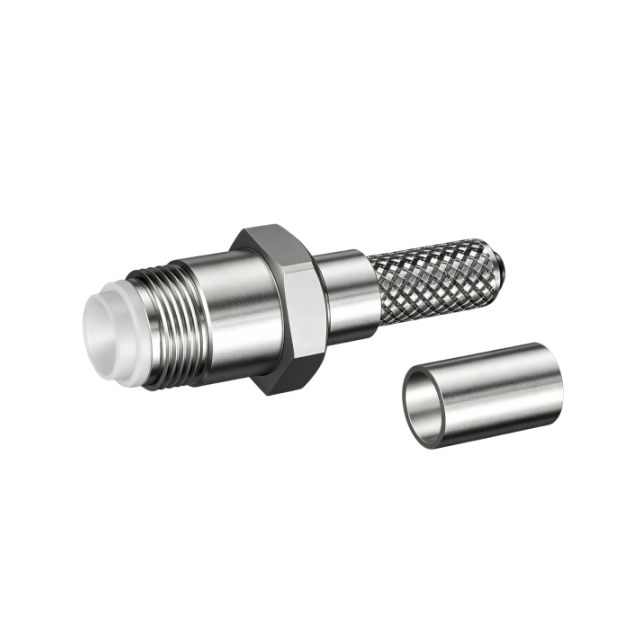

A: It is an FME straight cable jack (female contact inside, designed for cable termination, mates with FME plug).
Q: What is the frequency range?
A: DC to 3GHz with VSWR ≤1.22.
Q: What impedance does it support?
A350Ω characteristic impedance, standard for most RF and communication systems.
Q: Which cables are compatible?
A: Designed for 5/50s/50D flexible coaxial cables (commonly RG-174, RG-316, etc., but please verify dimensions).
Q: What materials are used?
A: Brass body nickel plated, gold plated center contacts (brass for male, beryllium copper for female), PTFE insulator, copper alloy crimp ferrule nickel plated.
Q: What is the temperature range?
A：-65℃ to +155℃, suitable for harsh environments.
