MCX Female to MCX Male RG174 RF Cable 1m Assembly

1.Product Specification

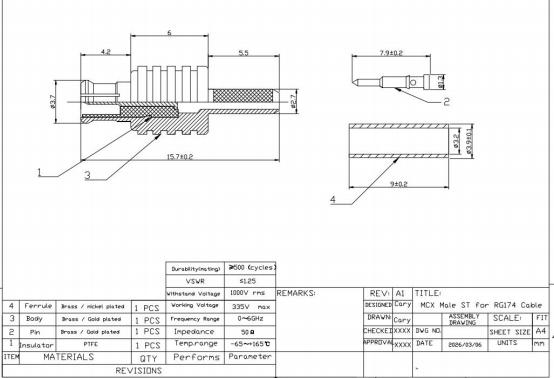

2.  MCX male

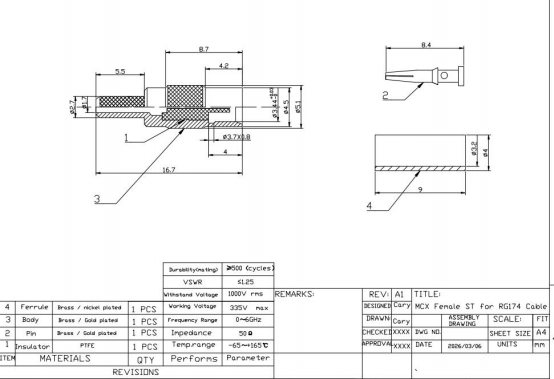

3.MCX female

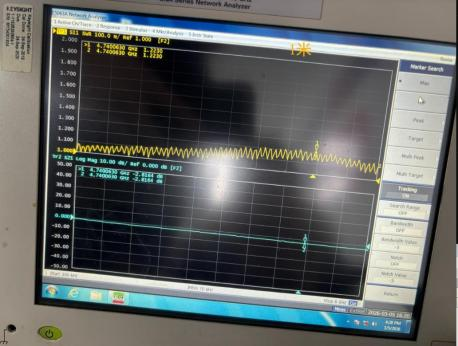

4.Testing VSWR and S21 between 0-6GHz

Product introduction

1. Reliable MCX Female to MCX Male Connection

The cable assembly is equipped with precision MCX female and MCX male connectors, ensuring secure and stable RF connections. The snap-on design allows quick installation and removal, making it ideal for compact wireless devices.

2. High-Quality RG174 Coaxial Cable

Built with durable RG174 coaxial cable, this assembly provides excellent flexibility and stable RF signal transmission. It supports frequencies up to 6GHz, ensuring consistent performance in high-frequency communication systems.

3. Excellent Signal Performance

The cable is tested for VSWR and S21 performance between 0–6GHz to ensure low signal loss and reliable transmission, making it suitable for demanding RF applications.

4. Durable and Robust Construction

With a tensile strength of up to 17 KGS, the cable offers strong mechanical durability while maintaining flexibility, ensuring long service life even in challenging installation environments.

5. Wide Operating Environment

Designed for industrial use, the cable operates reliably in temperatures from -40°C to +85°C and humidity levels from 5% to 95%, making it suitable for indoor and outdoor communication systems.

Application Scenarios

GPS antenna connection systems

Wireless communication modules

IoT and embedded RF devices

RF testing and measurement equipment

Automotive communication systems

FAQ

Q: What connectors are used in this cable assembly?

A:This cable features an MCX female connector on one end and an MCX male connector on the other end.

Q: What type of cable is used?

A:The assembly uses RG174 coaxial cable, which is flexible and commonly used in RF signal transmission.

Q:What is the cable length?

A:The standard cable length is 1 meter, but custom lengths can often be provided.

Q:What frequency range does the cable support?

A:The cable supports RF signal transmission and has been tested from 0 to 6GHz.

Q:Is the cable suitable for GPS antennas?

A:Yes, this cable is commonly used for GPS antenna connections and RF communication modules.

Q:What is the operating temperature range?

A:The cable operates reliably from -40°C to +85°C.
