GLC8103
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Product Specification

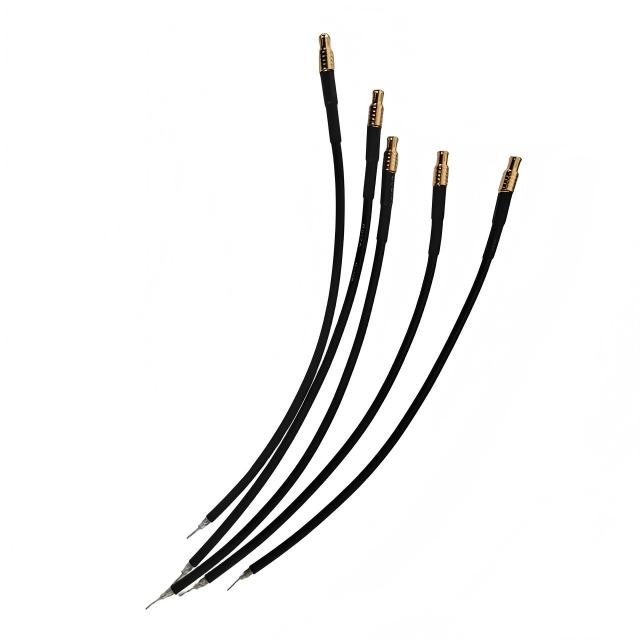

Product | Assembly cable |
P/N | GLC8103 |
Connector | MCX male to wire stripping:2:2:5 |
Cable | RG174-15cm |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～+85 |
Humidity-% | 5～95 |
Product introduction
1. MCX Male Connector for Reliable RF Connection
The cable features a precision MCX male connector designed for quick snap-on installation. It provides a secure RF connection and stable signal performance for compact communication devices and antenna systems.
2. Flexible RG174 Coaxial Cable
The cable is constructed with high-quality RG174 coaxial cable, offering excellent flexibility and durability. It supports stable RF signal transmission while allowing easy routing inside compact electronic devices.
3. Wide Frequency Performance
This cable assembly has been tested for VSWR and S21 performance between 0–6GHz, ensuring low signal loss and reliable RF signal transmission across a wide range of wireless applications.
4.Strong Mechanical Durability
With a tensile strength of up to 17 KGS, the cable provides strong mechanical stability while maintaining flexibility, making it suitable for demanding industrial environments.
5. Industrial Grade Environmental Reliability
The cable operates in temperatures from -40°C to +85°C and humidity levels from 5% to 95%, ensuring stable performance in both indoor and outdoor communication equipment.
Application Scenarios
GPS antenna modules
IoT communication devices
Wireless RF modules
Embedded communication systems
RF testing and development equipment
FAQ
Q:What connector type does this cable use?
A:This cable uses an MCX male connector on one end and open wire stripping on the other end for custom connection.
Q:What type of cable is used?
A:The cable uses RG174 coaxial cable, which is widely used for RF signal transmission.
Q: What is the cable length?
A:standard length is 15 cm, suitable for internal device connections.
Q:What frequency range does the cable support?
A:The cable has been tested for RF performance between 0 and 6 GHz.
Q:Is the cable suitable for antenna modules?
A:Yes, this cable is commonly used for antenna modules and RF communication devices.
Q: What is the operating temperature range?
A:The operating temperature range is -40°C to +85°C.
