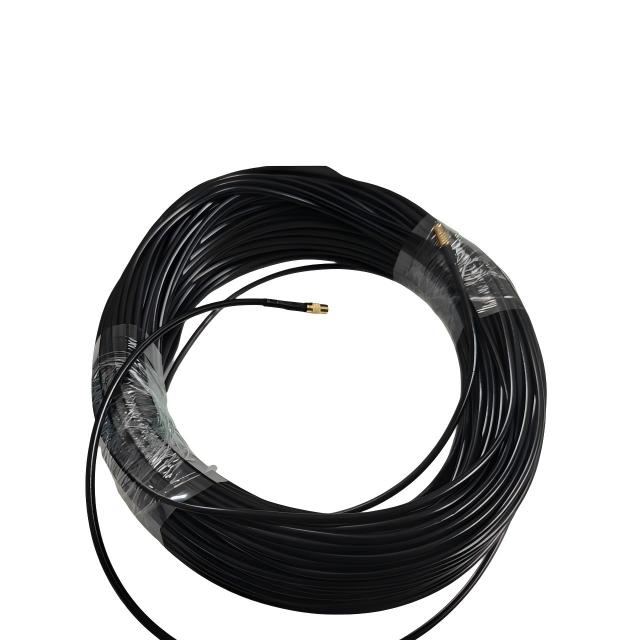

1.Product Specification
Product | Assembly cable |
P/N | GLC8102 |
Connector | MCX female to MCX male |
Cable | RG174-50m |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～+85 |
Humidity-% | 5～95 |

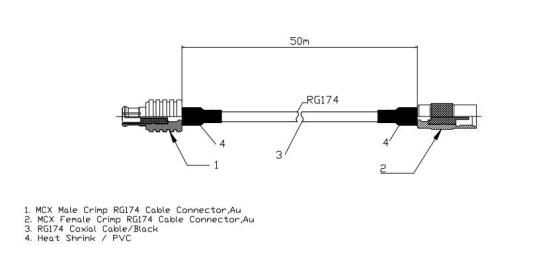

2.Drawing
Product introduction
1.Precision MCX Connectors – Gold‑plated MCX female and male contacts ensure reliable, low‑loss connections suitable for high‑frequency applications up to 6 GHz (tested).
2.RG174 Coaxial Cable – Flexible 2.8mm diameter cable with solid polyethylene insulation and braided shield provides excellent signal integrity and durability.
3.90 Ohm Impedance – Designed for systems requiring 90Ω characteristic impedance (e.g., some digital video or data interfaces); verify compatibility with your application.
4.Wide Operating Temperature – Rated from -40°C to +85°C, making it suitable for both indoor and outdoor equipment enclosures.
5.Mechanically Robust – Cable tensile strength tested to 17 KGS; crimp connectors with heat shrink strain relief ensure long‑lasting performance.
Application Scenarios
●Wireless Modules & IoT Devices – Connect MCX‑equipped modules (Wi‑Fi, Bluetooth, LoRa, GSM) to external antennas or test ports.
●Test & Measurement – Use as a flexible jumper between signal generators, spectrum analyzers, and DUTs in lab environments.
●GPS/GNSS Systems – Suitable for L1 band connections where 90Ω impedance is specified (e.g., some GPS receivers).
●Embedded RF Designs – Internal wiring in routers, gateways, and industrial equipment requiring compact, shielded RF links.
●Prototyping & Hobby Projects – Ideal for breadboarding and connecting MCX‑based RF circuits with minimal signal loss.
FAQ
Q:What is the impedance of the GLC8102 cable assembly?
A:The assembly has a characteristic impedance of 90±2 ohms, as specified in the technical data. Please ensure your system requires 90Ω impedance.
Q: What connectors are on this cable?
A:It features an MCX female connector on one end and an MCX male connector on the other end, both gold‑plated for reliable contact.
Q: What is the maximum frequency can this cable handle?
A:The cable is tested up to 6 GHz for VSWR and insertion loss, with attenuation data provided up to 2500 MHz. It is suitable for applications up to 6 GHz, but performance depends on length and mating.
Q: Is this cable RoHS compliant?
A:Yes, the GLC8102 is manufactured with RoHS‑compliant materials, ensuring environmental safety.
Q: Can I get this cable in a custom length?
A:Yes, custom lengths are available upon request. Please contact our sales team for bulk or special orders.
Q: What is the temperature range for operation?
A:The cable assembly operates reliably from -40°C to +85°C
