GLC195
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Availability: | |
|---|---|
| Quantity: | |
| PDF Export | |
| Technical data ofproduct | ||||||||
| Name of cable | Radio frequency cables with Foampolyethylene dielectric | |||||||
| Type of cable | LMR195 | Standard | -- | |||||
| 一、Structure diagram of product | ||||||||
![]() | ||||||||
| 二.Size of product | ||||||||
| No. | Item | Structure | Material | Color | ||||
| 1 | Inner conductor | 0.94±0.02mm | Bare copper | Yellow | ||||
| 2 | Insulation | 2,80±0.10mm | Foam PE | White | ||||
| 3 | Folia | 3.00±0.15mm | Aluminum foil | Silvergray | ||||
| 4 | Wire braid | 128*0.10mm | Tinnedcopper | Silver gray | ||||
| 5 | Jacket | 5.00±0.10mm | PVC | Black | ||||
| 6 | Making | LMR 195 | ||||||
| 三、Electrical physical and properties of product | ||||||||
| Item | Unit | Value | ||||||
| Capacitance | pF/m | 81±5 | ||||||
| Impadance | Ω | 50±2 | ||||||
| Velocity ratio | % | 81 | ||||||
| Bent radius min. | mm | 25 | ||||||
| Max voltage | VMS | 1500 | ||||||
| Max Frequeney | MHz | 3000 | ||||||
| Temperature scope | ℃ | -20~+80 | ||||||
| Attenuation constant at 20℃(Max.) | 200MHz | dB/100m | 17.3 | |||||
| 400 MHz | dB/100m | 23.8 | ||||||
| 900 MHz | dB/100m | 36.8 | ||||||
| 1500 MHz | dB/100m | 48.0 | ||||||
| 2000 MHz | dB/100m | 55.6 | ||||||
| 2500 MHz | dB/100m | 62.7 | ||||||
| 3000 MHz | dB/100m | 67.5 | ||||||

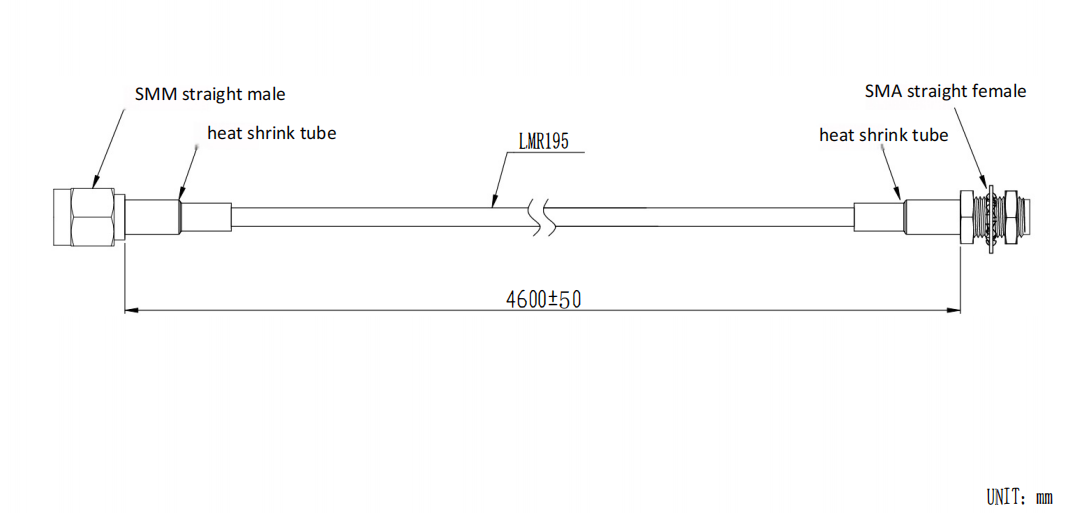

Drawing

Production introduction
1. High‑Quality LMR195 Coaxial Construction
Built with a bare copper inner conductor (0.94mm), foam polyethylene dielectric, aluminum foil + tinned copper braid (128×0.10mm), and black PVC jacket (5.0mm OD). Provides excellent shielding and low signal loss.
2. Broad Frequency Range (DC to 3GHz)
Supports frequencies up to 3000MHz with typical attenuation of 17.3dB/100m @200MHz, 48.0dB/100m @1500MHz, and 67.5dB/100m @3000MHz. Suitable for GPS, BeiDou, GLONASS, 4G/5G, and other RF applications.
3. Precision 50Ω Impedance & Stable Performance
Impedance 50±2Ω, capacitance 81±5pF/m, velocity ratio 81%. Maintains consistent signal integrity for demanding RF and digital communication systems.

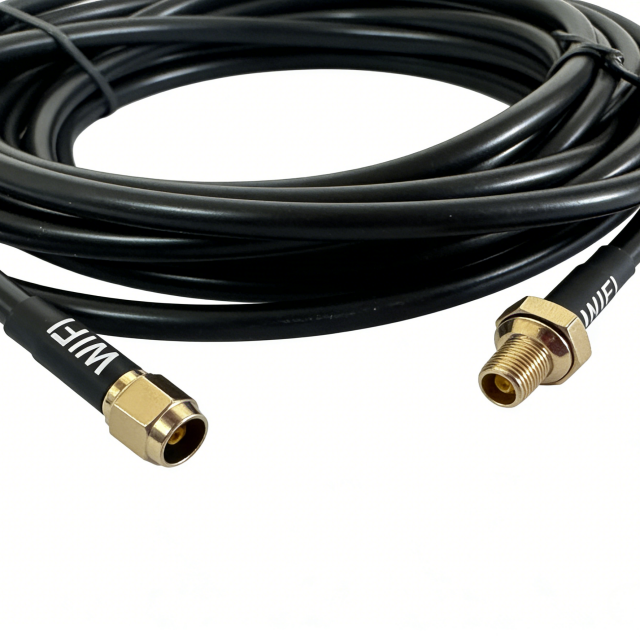

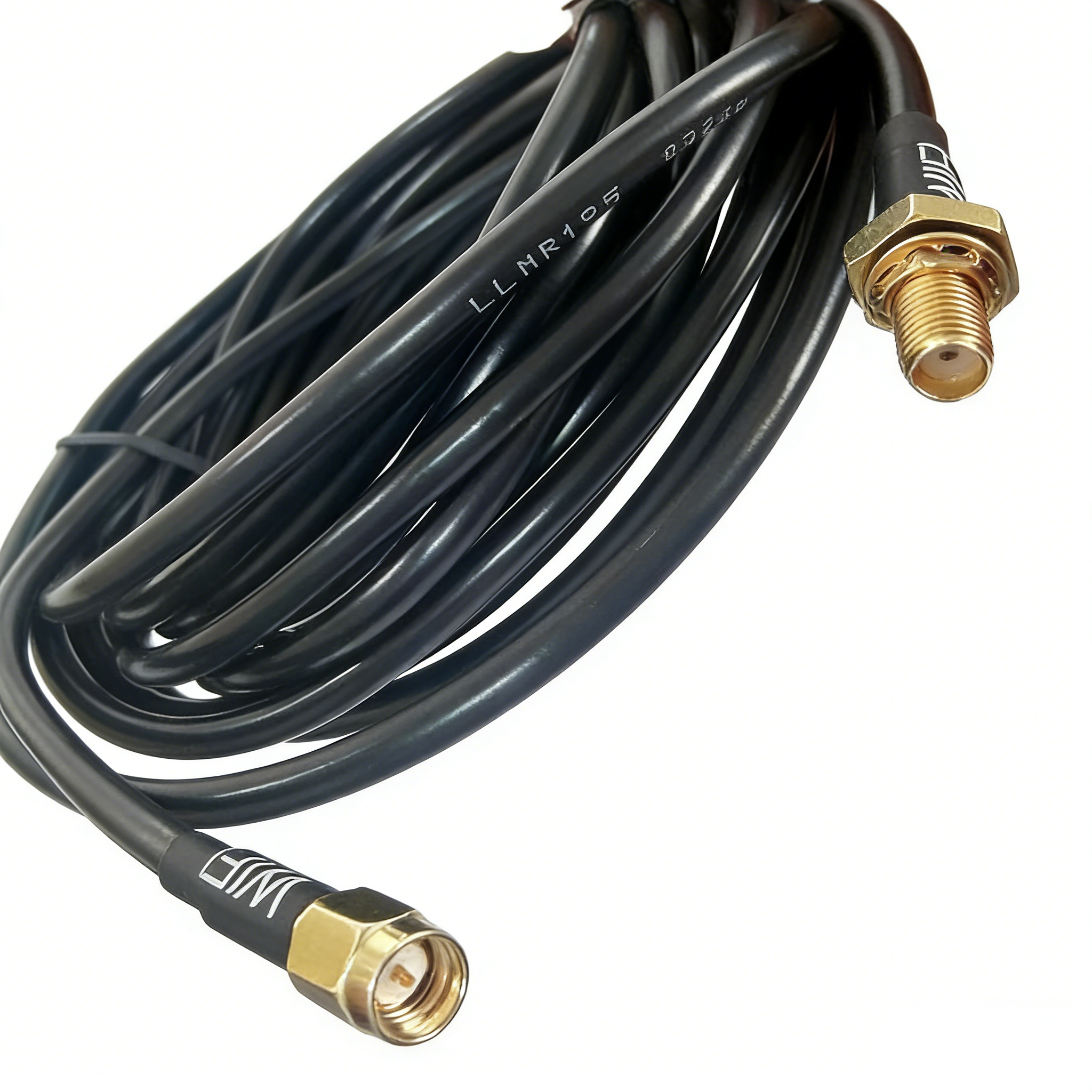

4. Durable PVC Jacket with SMA Connectors
Black PVC outer jacket resists abrasion, oil, and moderate weather. Fitted with SMA straight female to SMA straight male connectors, fully tested for continuity, short‑circuit, and mating fit. Length approx. 4.6m (4600mm).
5. Rigorous Factory Testing
Every GLC195 cable passes short‑circuit test, continuity test, VSWR and connector mating inspection. 4PCS/4PCS sample inspection with detailed report ensures reliable performance out of the box.
Application Scenarios
GNSS Antenna to Receiver Connection
Test & Measurement Setup
Base Station & Repeater Interconnect
Amateur Radio (Ham Radio)
Embedded RF Systems
FAQ
Q: What is the exact length of the GLC195 cable?
A: Typical length is approximately 4600mm (4.6 meters). Each unit is tested and measured within ±50mm tolerance.
Q: What connectors are on each end?
A: One end is SMA straight female, the other end is SMA straight male. Both are gold‑plated or nickel‑plated (standard SMA material).
Q: Is this cable suitable for outdoor use?
A: The PVC jacket offers basic weather resistance, but for permanent outdoor exposure we recommend additional protection (e.g., heat shrink or conduit). Operating temperature is -20°C to +80°C.
Q: What is the minimum bend radius?
A: The minimum bend radius is 25mm (approx. 1 inch), allowing flexible routing in tight spaces without damaging the cable.
Q: Can I use this cable for high‑power RF transmission?
A: Maximum working voltage is 1500V RMS. For high power, always check your frequency and power level against the cable’s attenuation and handling capability.
Q: Is the cable 50Ω or 75Ω?
A: 50Ω ±2Ω, designed for standard RF, GNSS, and communication systems.
