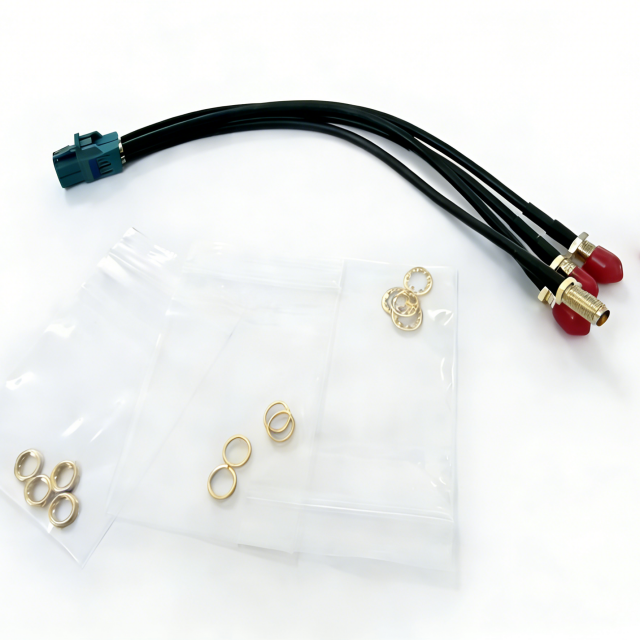

Mini Fakra to SMA Female Adapter Cable

Technical data of product
Name of cable			Radio frequency cables with Foam polyethylene dielectric
Type of cable			ALS-302-3
Customer number			1,06,061.0329		Version		A/1
一、Structure diagram of product
二、Size of product
No.	Item			Structure	Material		Color
1	Inner conductor			7/0.27±0.01mm	Bare copper		Yellow
2	Insulation			2.15±0.10mm	Foam PE		White
3	Folia			2.25±0.10mm	Aluminum foil		Silver gray
4	Wire braid			112*0.10±0.01mm	Tinned copper		Silver gray
5	Jacket			3.30±0.10 mm	PVC		Black
6	Making			ELESUN LOWLOSS COAXIAL CABLE SYWV-50-2/ALS-302-3****m
三、Electrical physical and properties of product
Item				Unit		Value
Capacitance				pF/m		80±3
Impedance				Ω		50±3
Velocity ratio				%		81
Bent radius				mm		66
Max voltage				VMS		1000
Max Frequency				MHz		6000
Temperature scope				℃		-40~+105
Attenuation constant at 20℃(Permissible lerror 10%		200MHz		dB/100m		22
		400MHz		dB/100m		32
		800MHz		dB/100m		44
		1000MHz		dB/100m		49
		1500MHz		dB/100m		65
		2000MHz		dB/100m		71
		2500MHz		dB/100m		81
		3000ML₇		dB/100m		8

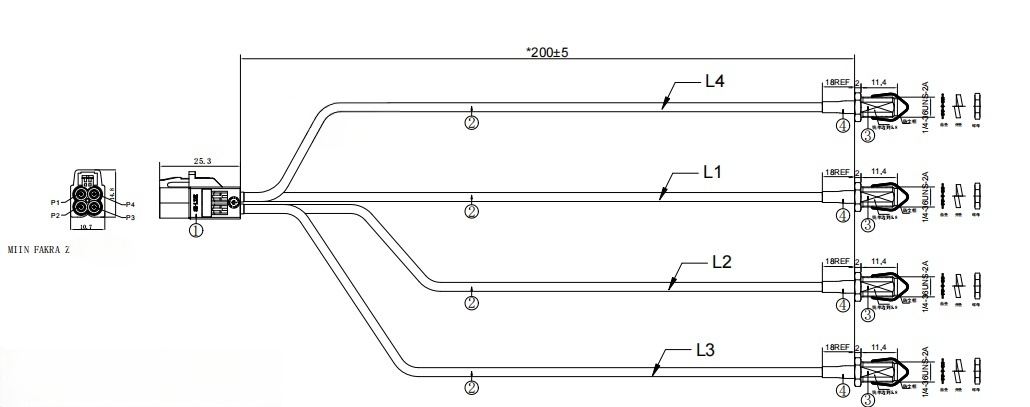

Drawing

Product introduction

1. Reliable RF Signal Transmission

Designed for stable and efficient signal transfer, minimizing signal loss in RF and GPS applications.

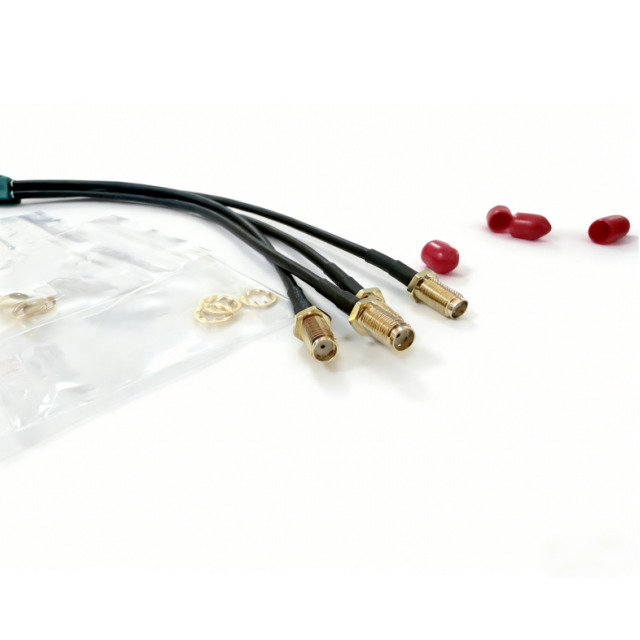

2. Mini Fakra to SMA Female Interface

Equipped with Mini Fakra and SMA female connectors, ensuring wide compatibility with automotive and communication devices.

3. High-Quality Coaxial Cable (Dacar 302)

Built with premium Dacar 302 cable for enhanced durability, flexibility, and consistent performance.

4. Durable & Automotive-Grade Design

Suitable for harsh environments, especially in vehicle systems requiring long-term reliability.

5. Plug-and-Play Installation

Easy to install and integrate into existing systems without additional tools or modifications.

Application Scenarios

Automotive GPS antenna connection

Vehicle infotainment systems

RF signal extension applications

Telematics and fleet management systems

Wireless communication equipment

FAQ

Q: What connectors does this cable use?

A:It features a Mini Fakra connector on one end and an SMA Female connector on the other.

Q:What is the cable type used?

A:The cable is made of high-quality Dacar 302 coaxial cable.

Q: Is this cable suitable for automotive use?

A:Yes, it is designed specifically for automotive and telematics applications.

Q: Can it be used for GPS antennas?

A:Yes, it is ideal for connecting GPS antennas to compatible devices.

Q: Does it support high-frequency signals?

A:Yes, it is suitable for RF signal transmission with low signal loss.

Q:Is the cable flexible for installation?

A:Yes, it offers good flexibility for easy routing in tight spaces.
