SMA Male 3dBi 2.4GHz WiFi Antenna Cable

1. Stable 2.4GHz Signal Transmission

Designed for 2400–2500MHz frequency range, ensuring reliable and consistent wireless signal performance for WiFi applications.

2. 3dBi Gain for Enhanced Coverage

Provides balanced signal strength with 3dBi gain, improving connectivity without excessive interference.

3. Omnidirectional Radiation Pattern

Offers 360° signal coverage, making it suitable for indoor and outdoor wireless environments.

4. Durable ABS Material Construction

Built with high-quality ABS radome, ensuring durability, weather resistance, and long-term performance.

5. Wide Compatibility with SMA Male Connector

Equipped with standard SMA male connector, compatible with routers, wireless modules, IoT devices, and more.

Testing

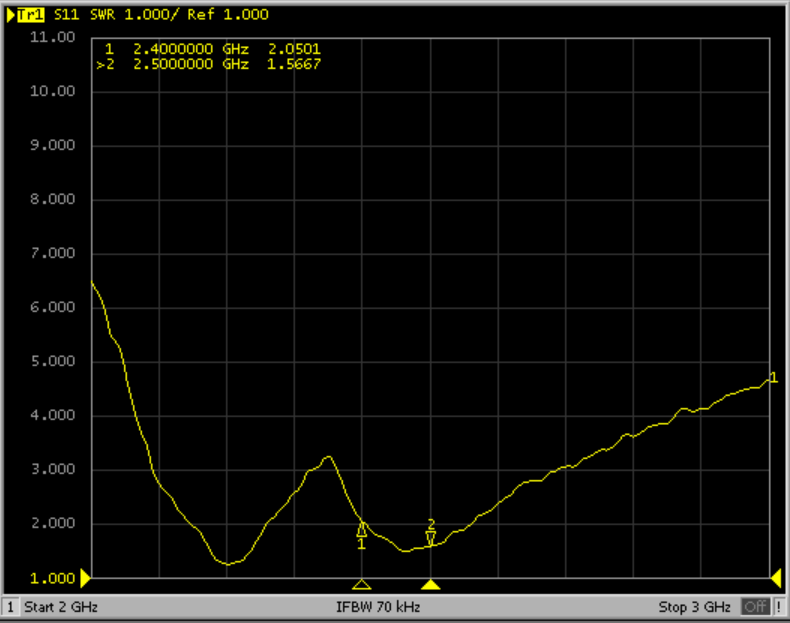

VSWR

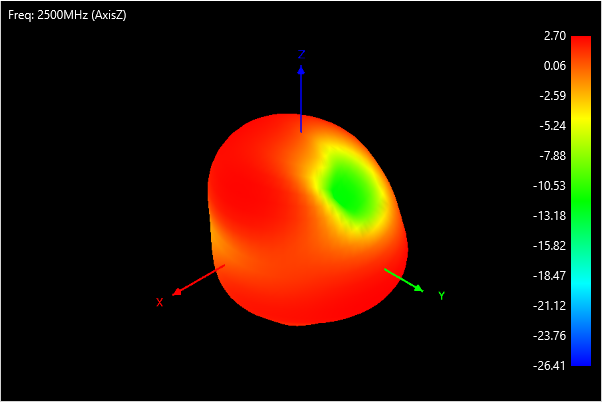

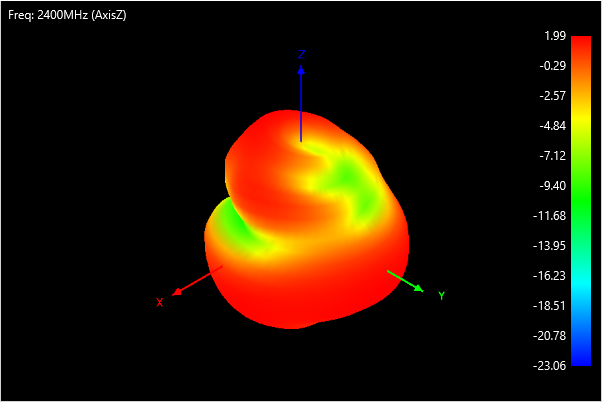

Radiation Pattern

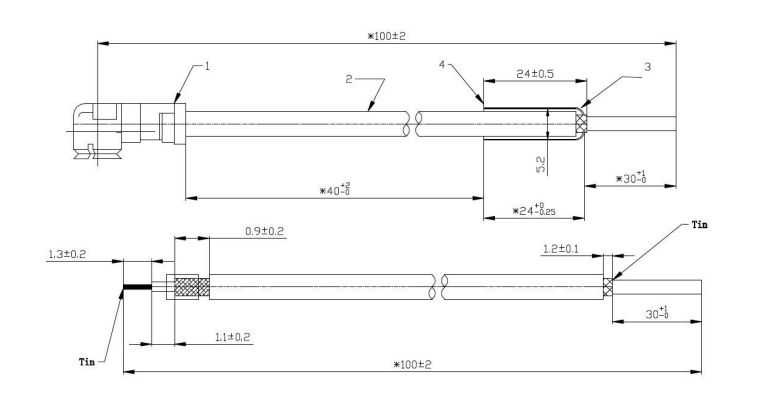

Drawing

Applications

WiFi routers and access points signal extension

IoT devices and smart home connectivity

Industrial wireless communication systems

Wireless monitoring and surveillance systems

Embedded modules and development boards

FAQ

Q:What frequency does this antenna cable support?

A:It supports the 2.4GHz band (2400–2500MHz), commonly used in WiFi applications.

Q:What connector type does it use?

A:This cable comes with an SMA male connector.

Q:Is this antenna directional or omnidirectional?

A:It is omnidirectional, providing 360-degree signal coverage.

Q:What is the gain of this antenna?

A:The antenna has a gain of 3dBi, suitable for general wireless applications.

Q: Can it be used outdoors?

A:Yes, the ABS material and wide temperature range (-40°C to +60°C) make it suitable for outdoor use.

Q:Is it compatible with all routers?

A:It is compatible with devices that support SMA male connectors.
