GLC228
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Main technical specifications | |
Frequency Range (MHZ) |
0~3000 |
Impedance(Ω) |
50 |
VSWR | <2.0 |
Insertion Loss(dB) | <2.0 |
Physical Properties | |
Cable | 1.13 Coaxial |
Connector | SMA female +ufl holder |
Storage Temp | -30℃~+75℃ |
Operating Temp | -20℃~+65℃ |

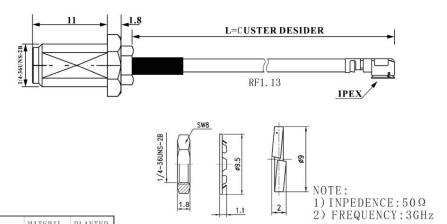

Outline Drawing

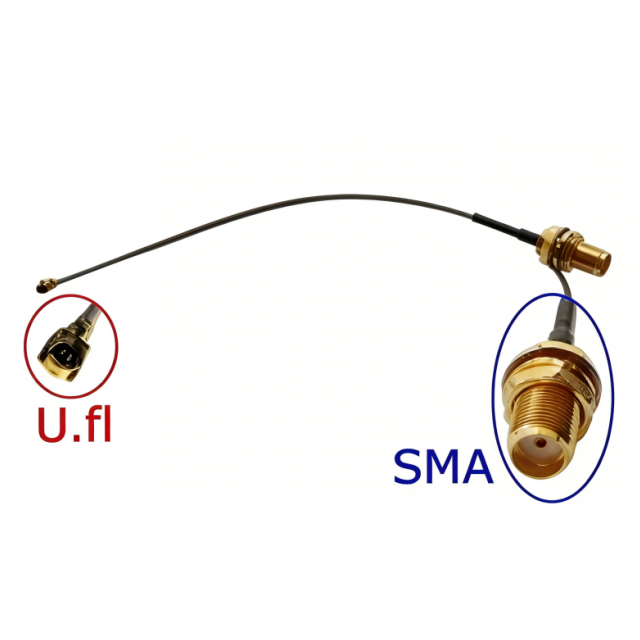

Product introduction
1. Wide Frequency Coverage (0–3000MHz)
Supports a broad frequency range up to 3GHz, making it suitable for WiFi, LTE, GPS, and other RF applications.
2. Stable Signal Performance
With VSWR < 2.0 and insertion loss < 2.0dB, the cable ensures reliable signal transmission and minimal loss.
3. High-Quality RG1.13 Coaxial Cable
Uses flexible and compact RG1.13 cable, ideal for internal device wiring and space-constrained applications.
4. Durable Connector Design
Equipped with SMA Female connector and U.FL holder for secure and stable connections in various devices.
5. Wide Operating Temperature Range
Operates reliably from -20°C to +65°C, with storage tolerance from -30°C to +75°C, suitable for industrial environments.
Application Scenarios
Wireless communication modules (WiFi / LTE / 4G / 5G)
IoT devices and smart hardware integration
GPS antenna connection systems
Embedded RF systems and PCB modules
Industrial communication equipment
FAQ
Q: What is the impedance of this cable?
A: The cable has a standard 50-ohm impedance, ideal for RF applications.
Q: What frequency range does it support?
A: It supports frequencies from 0 to 3000 MHz.
Q: What type of connectors are used?
A: One end is SMA Female, and the other is U.FL connector.
Q: Is this cable suitable for outdoor use?
A: It is mainly designed for internal or protected environments. Outdoor use requires additional protection.
Q: What is the cable type?
A: It uses RG1.13 coaxial cable, known for flexibility and compact size.
Q: Can I customize the cable length?
A: Yes, cable length can typically be customized based on your requirements.
Main technical specifications | |
Frequency Range (MHZ) |
0~3000 |
Impedance(Ω) |
50 |
VSWR | <2.0 |
Insertion Loss(dB) | <2.0 |
Physical Properties | |
Cable | 1.13 Coaxial |
Connector | SMA female +ufl holder |
Storage Temp | -30℃~+75℃ |
Operating Temp | -20℃~+65℃ |
Outline Drawing
Product introduction
1. Wide Frequency Coverage (0–3000MHz)
Supports a broad frequency range up to 3GHz, making it suitable for WiFi, LTE, GPS, and other RF applications.
2. Stable Signal Performance
With VSWR < 2.0 and insertion loss < 2.0dB, the cable ensures reliable signal transmission and minimal loss.
3. High-Quality RG1.13 Coaxial Cable
Uses flexible and compact RG1.13 cable, ideal for internal device wiring and space-constrained applications.
4. Durable Connector Design
Equipped with SMA Female connector and U.FL holder for secure and stable connections in various devices.
5. Wide Operating Temperature Range
Operates reliably from -20°C to +65°C, with storage tolerance from -30°C to +75°C, suitable for industrial environments.
Application Scenarios
Wireless communication modules (WiFi / LTE / 4G / 5G)
IoT devices and smart hardware integration
GPS antenna connection systems
Embedded RF systems and PCB modules
Industrial communication equipment
FAQ
Q: What is the impedance of this cable?
A: The cable has a standard 50-ohm impedance, ideal for RF applications.
Q: What frequency range does it support?
A: It supports frequencies from 0 to 3000 MHz.
Q: What type of connectors are used?
A: One end is SMA Female, and the other is U.FL connector.
Q: Is this cable suitable for outdoor use?
A: It is mainly designed for internal or protected environments. Outdoor use requires additional protection.
Q: What is the cable type?
A: It uses RG1.13 coaxial cable, known for flexibility and compact size.
Q: Can I customize the cable length?
A: Yes, cable length can typically be customized based on your requirements.
