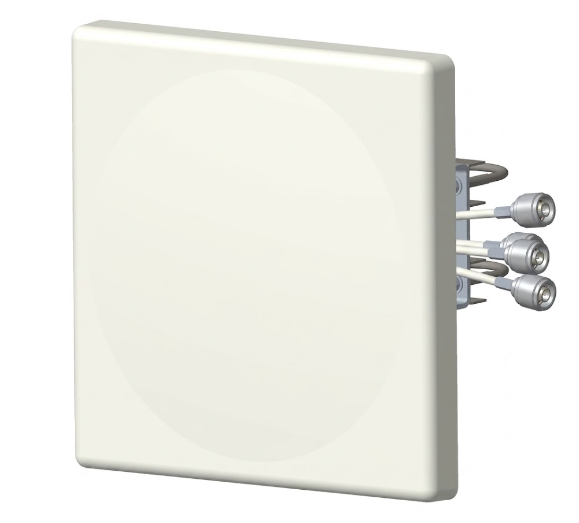

12dBi Directional Panel Antenna with N connector for Wi-Fi 7 system

Product Introduction

1. Tri-Band Wide Frequency Coverage
   Supports 2400-2500/5150-6000/6000-7125MHz frequency bands, providing reliable wireless connectivity for Wi-Fi 6E, Wi-Fi 7, and other high-performance wireless communication systems.

2. High Gain Performance Across Multiple Bands
   Delivers peak gains of 9.5dBi, 11dBi, and 12dBi across different frequency ranges, enhancing signal strength and extending wireless coverage for demanding network environments.

3. Dual-Polarization Design for Improved Stability
   Features vertical and horizontal polarization to improve signal diversity, reduce interference, and ensure stable data transmission in complex wireless deployment scenarios.

4. High Isolation & Directional Coverage
   Provides ≥30dB isolation and ≥20dB front-to-back ratio, optimizing RF performance and reducing signal interference for point-to-point links, outdoor hotspots, and enterprise networks.

5. Durable Outdoor Construction & Flexible Installation
   Built with an ABS radome and supporting -40℃ to +60℃ operating temperatures, this antenna is designed for harsh environments. The mast and wall mounting design allows flexible installation for various outdoor wireless applications.

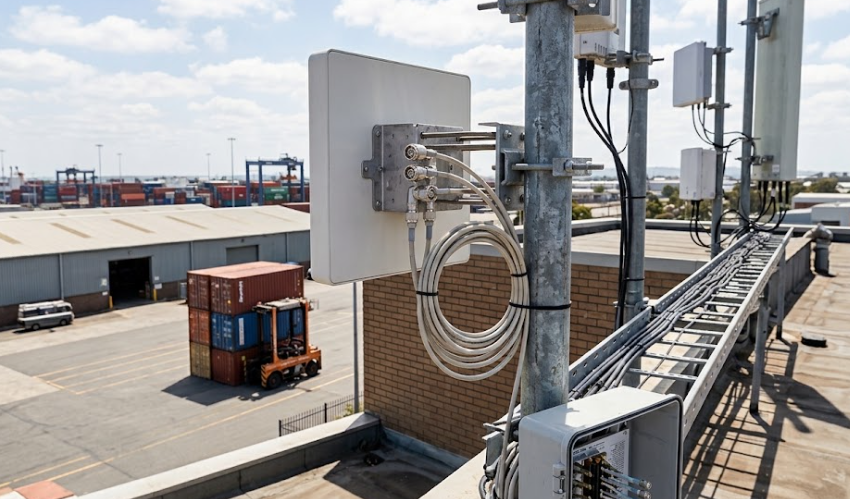

Application Scenarios

1. Outdoor Wireless Networks – Provide long-range and stable coverage for outdoor Wi-Fi networks, public hotspots, and large open areas such as parks, campuses, and commercial districts.

2. Point-to-Point Wireless Links – Deliver focused directional transmission for building-to-building connections, backhaul networks, and high-speed wireless bridges with improved signal strength.

3. Enterprise & Industrial Networks – Support reliable wireless communication in factories, warehouses, and industrial sites where stable connectivity and extended coverage are required.

4. Smart City & Public Infrastructure – Enable high-capacity wireless connections for surveillance systems, smart devices, and public communication networks in urban environments.

5. Wi-Fi 7 High-Density Applications – Provide enhanced coverage and performance for next-generation Wi-Fi 7 systems in offices, campuses, and other environments requiring high-speed wireless connectivity.




FAQ

Q: What connector type is used?

A: It uses 4 × N male connectors with 50Ω impedance for reliable RF connections.

Q: Can it be installed outdoors?
A: Yes, it is designed for outdoor deployment with an ABS radome and an operating temperature range of -40℃ to +60℃.

Q: What mounting options are available?
A: It supports both mast mounting and wall mounting, providing flexible installation options for different environments.

Q: How resistant is it to interference?
A: It features ≥30dB isolation and ≥20dB front-to-back ratio to reduce interference and improve wireless performance.

Q: What is the maximum input power?
A: It supports up to 50W maximum input power, suitable for high-performance Wi-Fi 7 and outdoor wireless applications.
