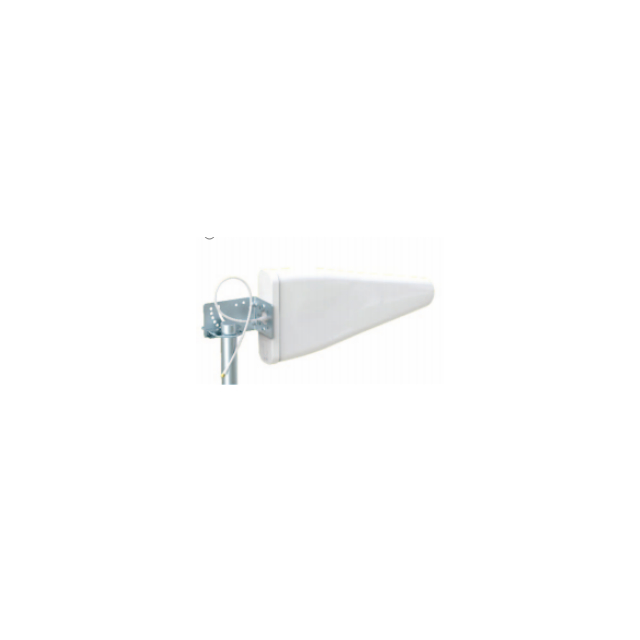

GL-BV1108
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range | 698-960/1710-2700/3300-3800/4800-5000MHz |
VSWR | ≤2.5 |
Impedance | 50 Ω |
Gain | 10-11dBi |
Polarization | Vertical or Horizontal |
Beam Width H(half-power) | 60±8/55±8° |
Beam Width V(half-power) | 50±5/45±5° |
Front to Back Ratio | ≥21dB |
Lightning Protection | DC Ground |
Max.Power | 100w |
Connector | SMA-male |
Dimension | 445x210x70mm |
Weight | 0.75Kg |
Rated Wind Speed | 100km/h |
Radome Material | Protected ABS |
Cable | 300mm |
Diameter of installation pole | Φ30-Φ53mm |
Working Temperature | -40~60℃ |
Frequency Range | 698-960/1710-2700/3300-3800/4800-5000MHz |
VSWR | ≤2.5 |
Impedance | 50 Ω |
Gain | 10-11dBi |
Polarization | Vertical or Horizontal |
Beam Width H(half-power) | 60±8/55±8° |
Beam Width V(half-power) | 50±5/45±5° |
Front to Back Ratio | ≥21dB |
Lightning Protection | DC Ground |
Max.Power | 100w |
Connector | SMA-male |
Dimension | 445x210x70mm |
Weight | 0.75Kg |
Rated Wind Speed | 100km/h |
Radome Material | Protected ABS |
Cable | 300mm |
Diameter of installation pole | Φ30-Φ53mm |
Working Temperature | -40~60℃ |
