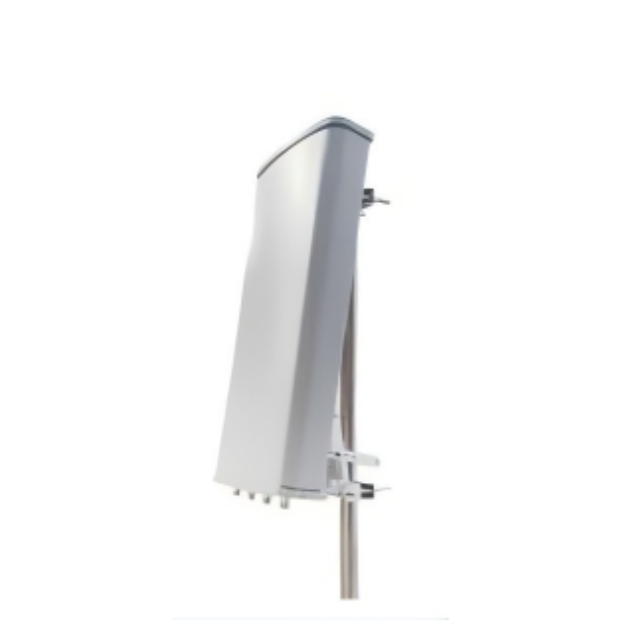

GL8035G10
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range | 750-803 | 2620-2690 | 3300-3600 |
Gain (dBi) | 10±1 | 10±1 | 10±1 |
VSWR | ≤1.5 | ||
Front-to-back ratio- dB | ≥23 | ||
Polarization | vertical | ||
Horizontal beam width(°) | 65±8/65±8/65±8 | ||
Vertical beam width (°) | 32±5/32±5/32±5 | ||
Maximum input power (W) | 100 | ||
Impedance (Ω) | 50 | ||
Lightning protection | DC Ground | ||
Mechanical Index | |||
Dimensions (mm) | 750*160*80mm | ||
Input connector type | 3*N-Female | ||
Radome material | UPVC | ||
Antenna weight-KGS | 2.5 | ||
Usage scenarios | outdoor | ||
Operating temperature (℃) | -40 ~ +85 | ||
Humidity range (%) | 5~95 | ||
Electrical Specifications | |||
Frequency Range | 750-803 | 2620-2690 | 3300-3600 |
Gain (dBi) | 10±1 | 10±1 | 10±1 |
VSWR | ≤1.5 | ||
Front-to-back ratio- dB | ≥23 | ||
Polarization | vertical | ||
Horizontal beam width(°) | 65±8/65±8/65±8 | ||
Vertical beam width (°) | 32±5/32±5/32±5 | ||
Maximum input power (W) | 100 | ||
Impedance (Ω) | 50 | ||
Lightning protection | DC Ground | ||
Mechanical Index | |||
Dimensions (mm) | 750*160*80mm | ||
Input connector type | 3*N-Female | ||
Radome material | UPVC | ||
Antenna weight-KGS | 2.5 | ||
Usage scenarios | outdoor | ||
Operating temperature (℃) | -40 ~ +85 | ||
Humidity range (%) | 5~95 | ||
