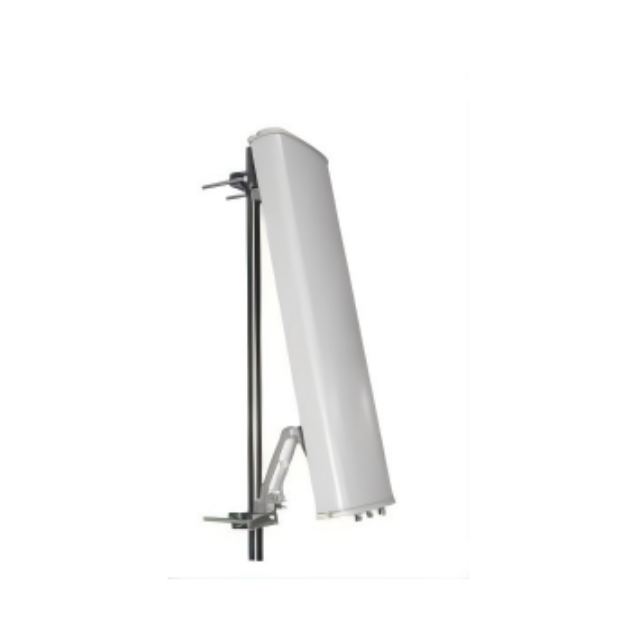

GL1215G12
Asialeren
8517710000
10pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||
Frequency Range | 1180-1280 | 1560-1620 |
Gain (dBi) | 11±1 | 12±1 |
VSWR | ≤1.5 | |
Front-to-back ratio- dB | ≥23 | |
Polarization | vertical | |
Horizontal beam width(°) | 65±8 | |
Vertical beam width (°) | 32±5/32±5 | |
Maximum input power (W) | 100 | |
Impedance (Ω) | 50 | |
Lightning protection | DC Ground | |
Mechanical Index | ||
Dimensions (mm) | 750*160*80mm | |
Input connector type | 2*N-Female | |
Radome material | UPVC | |
Antenna weight-KGS | 2.5 | |
Usage scenarios | outdoor | |
Operating temperature (℃) | -40 ~ +85 | |
Humidity range (%) | 5~95 | |
Product Introduction
Dual-Band High Performance – Covers 1180–1280 MHz and 1560–1620 MHz with optimized gain (11±1 dBi and 12±1 dBi), ideal for navigation and communication base stations.
Wide & Directed Coverage – Features a horizontal beamwidth of 65±8° and vertical beamwidth of 32±5°, offering broad yet precise upward signal projection.
Robust & Weatherproof Build – Designed for outdoor use with UPVC radome, operating in extreme temperatures (-40°C to +85°C) and humidity (5–95%).
High Power & Secure Connection – Supports up to 100W input power, includes 2× N-female connectors, and features DC ground lightning protection for safety.
Customizable Design – Offers flexibility in connector type, frequency, size, gain, and mounting to meet diverse application needs.
Application Scenarios
Ground-based navigation and communication base stations (e.g., GPS, GLONASS)
Airfield and aviation communication infrastructure
Fixed outdoor telemetry and data link stations
Monitoring and detection systems requiring upward signal focus
Custom deployment in military, aviation, and research facilities
FAQ
Q: What frequency bands does this antenna support?
A: It supports 1180–1280 MHz (1.2G band) and 1560–1620 MHz (1.5G band).
Q: What is the antenna’s beamwidth?
A: Horizontal beamwidth is 65±8°, and vertical beamwidth is 32±5° per band.
Q: Does it include lightning protection?
A: Yes, it features DC ground lightning protection.
Q: What connectors are used?
A: It comes with 2× N-female connectors.
Q: Can this antenna be customized?
A: Yes, connector type, frequency, size, gain, and mounting can be customized upon request.
Q: What is the operating temperature range?
A: It operates from -40°C to +85°C, suitable for harsh outdoor environments.
