GL9058M260
Asialeren
8517710000
10pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||
Frequency Range | 900M/1.2G/1.5G/2.4G/5.2G/5.8G | |
Gain (dBi) | 5±1/8±1/12±1/14±1 | |
VSWR | ≤2.0/≤1.8/≤2.0/≤2.0 | |
Polarization | 5*vertical / 1*horizontal | |
F/B Ratio | ≥15/≥20/≥23 | |
Maximum input power (W) | 100 | |
Impedance (Ω) | 50 | |
Mechanical Specifications | ||
Dimensions (mm) | 260*260*45mm | |
Antenna weight (Kg) | 1 | |
Radome color | Black | |
Input connector type | 6*N male | |
Environmental indicators | ||
Usage scenarios | Outdoor | |
Operating temperature (℃) | -40 to +70 | |
Humidity range (%) | 5 to 95 | |

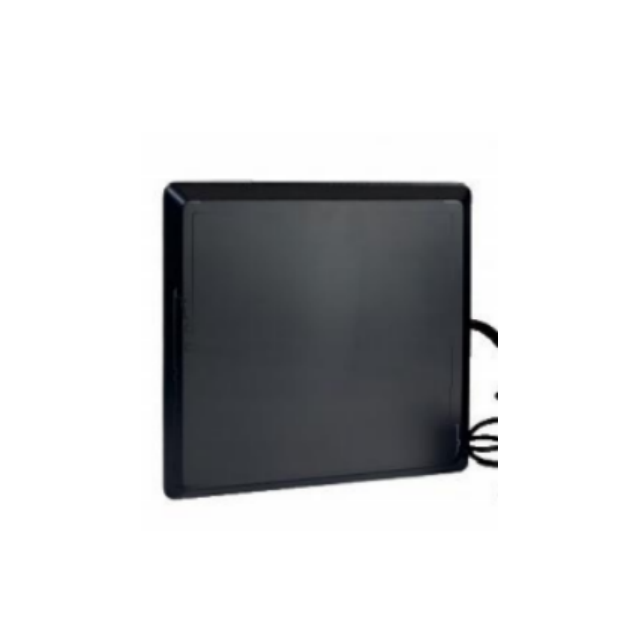

Product Introduction
Six-Band Wide Coverage – Supports 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, and 5.8GHz for comprehensive multi-system signal interference.
Compact & Mount-Ready Design – Features an integrated clamp for easy and secure outdoor installation, with a slim profile (260×260×45 mm) and light weight (1 kg).
High Gain Across All Bands – Delivers optimized gain from 5±1 dBi to 14±1 dBi per frequency, ensuring reliable signal reach and jamming effectiveness.
Rugged Outdoor Construction – Built to operate in extreme conditions (-40°C to +70°C, 5–95% humidity) with a black radome for durability and low visibility.
High-Power & Standard Connectivity – Supports up to 100W input power and includes 6× N-male connectors for seamless integration into professional jamming systems.
Application Scenarios
Fixed outdoor signal jamming in military and defense installations
Drone detection and neutralization around critical infrastructure
Perimeter security and communication blocking for private facilities
Tactical field deployments requiring quick setup and stable mounting
Multi-band interference testing and training in electronic warfare scenarios
FAQ
Q: What frequency bands does this antenna cover?
A: It covers six bands: 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, and 5.8GHz.
Q: Does it come with a mounting clamp?
A: Yes, it includes an integrated clamp for easy and secure outdoor installation.
Q: What type of connectors are used?
A: It is equipped with 6× N-male connectors.
Q: Is it suitable for all-weather outdoor use?
A: Yes, it is designed to operate from -40°C to +70°C and can withstand 5–95% humidity.
Q: What is the maximum power input?
A: The antenna supports up to 100W input power.
Q: What is the weight and size of the antenna?
A: It measures 260×260×45 mm and weighs only 1 kg.
