GLU4FG1B
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range (MHz) | 350-450 | ||
Horizontal beam width(°) | 360 | ||
Vertical beam width (°) | 60 | ||
Gain (dBi) | 1 | ||
Polarization | Vertical | ||
VSWR | ≤2.0 | ||
Maximum input power (W) | 150 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | Φ20×300 | ||
Antenna weight (Kg) | 0.2 | ||
Radome material | fiberglass | ||
Radome color | grey | ||
Input connector type | N-K | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Maximum wind speed (km/h) | 200 | ||
Installing the Hardware | |||
Installation | Connector fixing | ||
Product Introduction
1. Optimized for the 350-450MHz UHF band
The antenna precisely covers the 350-450MHz band, providing excellent frequency matching and signal response, making it suitable for professional communications, telemetry, and data transmission systems.
2. Omnidirectional radiation, 360° coverage
A 360° horizontal beamwidth and a 60° vertical beamwidth provide uniform, all-around signal coverage. Easy installation, no directional adjustments required, and suitable for multi-node networking.
3. High power capacity, maximum input 150W
Supporting up to 150W of input power, it meets high-load communication requirements and is suitable for high-intensity applications such as emergency communications and industrial control.

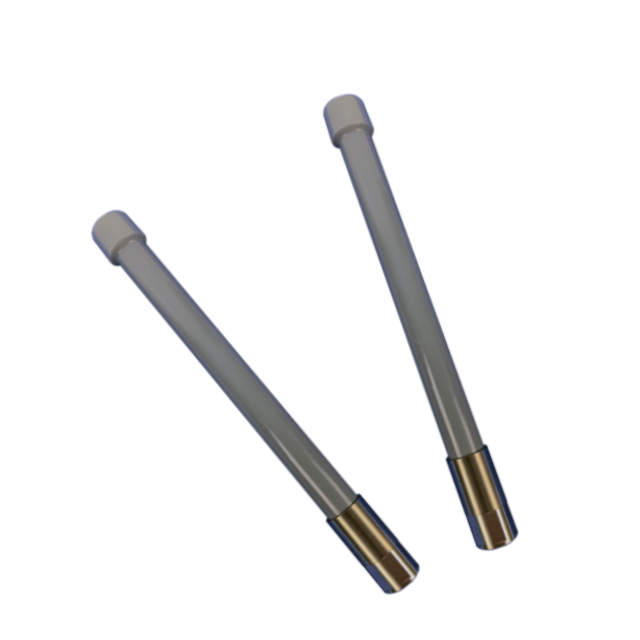

4. Rugged fiberglass casing, weather-resistant and corrosion-resistant
Made of high-quality fiberglass, the sturdy construction and gray exterior are UV-resistant and corrosion-resistant, making it suitable for outdoor, coastal, or industrial environments.
5. Wide operating temperature and strong wind resistance, suitable for extreme environments
The operating temperature range is -40°C to +70°C, and it can withstand wind speeds up to 200 km/h, ensuring stable operation in extreme cold, heat, or strong winds.
Application Scenarios
●Professional intercom and base station communications: Suitable for professional wireless intercom systems, repeaters, and base station antennas in the 350-450MHz frequency band.
●Industrial remote control and data acquisition: Suitable for factory automation, PLC control, sensor networks, and remote data telemetry.
●Public safety and emergency communications: Vehicle-mounted or fixed communications equipment for police, fire, and rescue departments.
●IoT and smart metering: Data backhaul for remote meter reading systems such as smart water and electricity meters.
FAQ
Q: What is the applicable frequency range for this antenna? A: The frequency range is 350-450MHz and is designed specifically for wireless communication systems in the UHF band.
Q: Is the antenna waterproof and corrosion-resistant?
A: Yes, the fiberglass housing is waterproof and corrosion-resistant, making it suitable for long-term outdoor use.
Q: How is it installed? Do any specialized tools are required?
A: It is fixed and mounted using an N-K connector, which is simple and requires no specialized tools.
Q: What is the operating temperature range? Can it be used in extremely cold regions?
A: The operating temperature range is -40°C to +70°C, ensuring stable operation in both extremely cold and high-temperature environments.
Q: What is the connector type? Is it compatible with common devices?
A: It uses an N-K connector with an impedance of 50Ω, making it compatible with a wide range of UHF communication equipment.
Q: What are the weight and dimensions of the antenna? Is it easy to install?
A: Dimensions are Φ20 × 300mm and weigh only 0.2kg, making it lightweight, portable, and easy to install.
