GL9058B6M6
Asialeren
8517710000
10pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||
Frequency Range | 900M/1.2G/1.5G/2.4G/5.2G/5.8G | |
Gain (dBi) | 5±1/8±1/12±1/17±1 | |
VSWR | ≤2.0/≤1.8/≤2.0/≤2.0 | |
Polarization | 5*vertical / 1*horizontal | |
F/B Ratio | ≥15/≥20/≥23 | |
Maximum input power (W) | 100 | |
Impedance (Ω) | 50 | |
Mechanical Specifications | ||

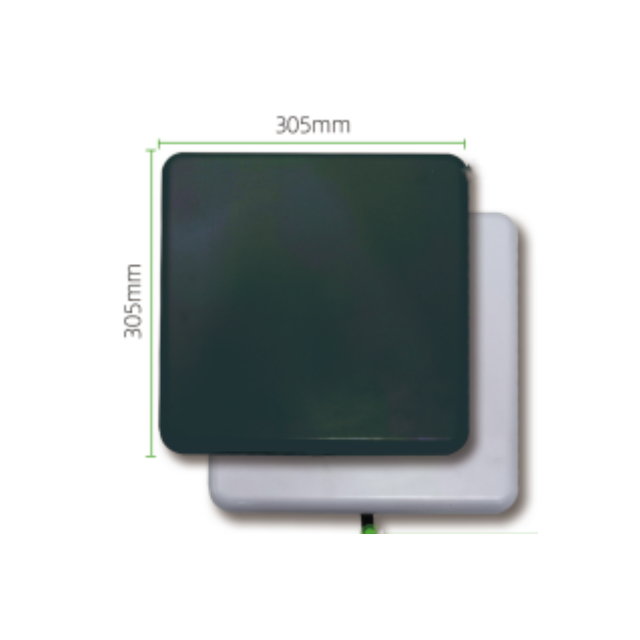

Dimensions (mm) | 305*305*25MM | |
Antenna weight (Kg) | 1 | |
Radome color | Black | |
Input connector type | 6*N male | |
Environmental indicators | ||
Usage scenarios | Outdoor | |
Operating temperature (℃) | -40 to +70 | |
Humidity range (%) | 5 to 95 | |
Product Introduction
1.Six-Band Full Coverage, One Unit for Multiple Systems: Supports six major frequency bands: 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, and 5.8GHz, widely applicable to various communication systems such as 2G/3G/4G, GPS, WiFi 2.4G/5G, and 5.8G private networks.
2.Optimized Gain Segmentation, Suitable for Both Short and Long Distances: Gain range from 5±1dBi to 17±1dBi, with wide low-frequency coverage and strong high-frequency penetration, adapting to communication needs at different distances and in various scenarios.
3.Standard Mounting Fixture, Ready to Use: Comes with its own mounting fixture, requiring no additional accessories, allowing for quick and easy installation on railings, posts, or brackets.
4.Six-Port Design, Supports Multi-System Co-location: Provides six N-type male connectors, supporting simultaneous access for multiple devices and multiple frequency bands, suitable for system integration and signal aggregation scenarios.
5.Rugged outdoor design, adaptable to harsh environments: Black UV-resistant outer casing, operating temperature -40℃ to +70℃, humidity 5%-95%, providing excellent weather resistance and durability.
Application Scenarios
Multi-carrier base station co-location, signal coverage enhancement
Long-range wireless monitoring, forest fire prevention, border communication
Industrial IoT, smart farms, remote data acquisition
Multi-band wireless network coverage in campuses, industrial parks, ports, etc.
Mobile communication vehicles, temporary emergency communication sites
FAQ
Q: Which frequency bands does this antenna support?
A: Supports six frequency bands: 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, and 5.8GHz, providing wide coverage.
Q: What is the antenna gain?
A: Gain varies with frequency band, at 5±1dBi, 8±1dBi, 12±1dBi, and 17±1dBi respectively, with higher gain at higher frequencies.
Q: Does it support horizontal and vertical polarization?
A: Supports 5-channel vertical polarization and 1-channel horizontal polarization to adapt to different signal reception needs.
Q: What is the maximum input power?
A: The maximum input power is 100W, suitable for high-power transmission scenarios.
Q: What are the antenna's dimensions and weight?
A: Dimensions are 305×305×25mm, weight is approximately 1kg, compact and lightweight.
Q: What is the interface type?
A: Equipped with 6 N-type male connectors, a common interface type for standard communication equipment.
