GL9058M5
Asialeren
8517710000
10pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||
Frequency Range (MHz) | 860-960/1100-1300/1570-1630/ 2400-2500/5100-5900 | |
Gain (dBi) | 8±1/12±1/14±1/16±1 | |
VSWR | ≤1.8/≤1.8/≤1.5/≤2.0 | |
Polarization | 5*Vertical | |
F/B Ratio | ≥15/≥20/≥23 | |
Maximum input power (W) | 100 | |
Impedance (Ω) | 50 | |
Mechanical Specifications | ||

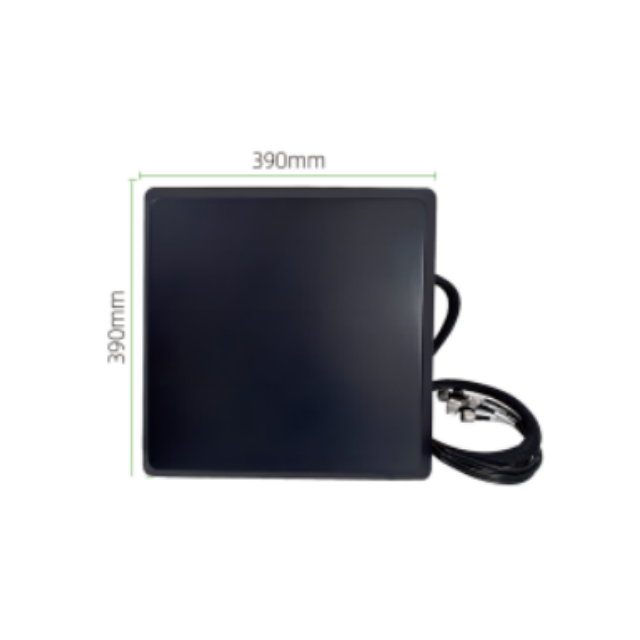

Dimensions (mm) | 390*390*50MM | |
Antenna weight (Kg) | 1.2 | |
Radome color | Black | |
Input connector type | 5*N female | |
Environmental indicators | ||
Usage scenarios | Outdoor | |
Operating temperature (℃) | -40 to +70 | |
Humidity range (%) | 5 to 95 | |
Product Introduction
Five-Band Broad Spectrum Coverage – Supports 860-960MHz, 1100-1300MHz, 1570-1630MHz, 2400-2500MHz, and 5100-5900MHz for comprehensive signal interference across multiple systems.
Graduated High Gain Performance – Provides optimized gain from 8 dBi to 16 dBi across bands, ensuring strong signal projection and effective jamming reach.
Directional Precision with High F/B Ratio – Features front-to-back ratios ≥15 to ≥23, enhancing directional accuracy and minimizing unwanted signal interference.
Ruggedized Outdoor Design – Built to operate in extreme conditions (-40°C to +70°C, 5–95% humidity) with a compact, robust form (390×390×50 mm, 1.2 kg).
High-Power Multi-Port Connectivity – Supports up to 100W input power and includes 5× N-female connectors for flexible, high-reliability system integration.
Application Scenarios
Multi-system signal jamming in military and defense operations
Drone detection and countermeasure (C-UAS) systems
Secure zone protection against unauthorized communication
Tactical field communications interference
Electronic warfare training and simulation environments
FAQ
Q: What frequency bands does the GL9058M5 cover?
A: It covers five bands: 860-960MHz, 1100-1300MHz, 1570-1630MHz, 2400-2500MHz, and 5100-5900MHz.
Q: What is the gain in the 5100-5900MHz band?
A: The gain is 16 ± 1 dBi in the 5100-5900MHz range.
Q: What connectors are used?
A: It is equipped with 5× N-female connectors.
Q: Can this antenna be used in extreme weather?
A: Yes, it is designed for outdoor use with an operating temperature range of -40°C to +70°C and humidity resistance from 5% to 95%.
Q: What is the maximum power input?
A: The antenna supports up to 100W of input power.
