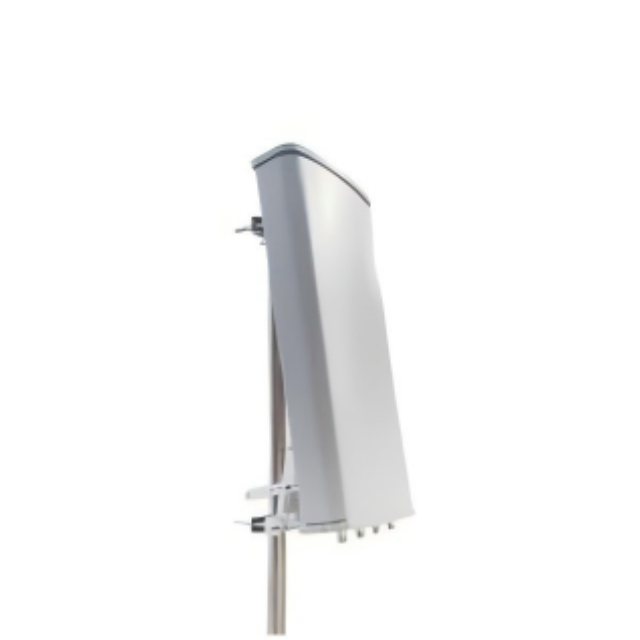

2.4G/5.8G 2-band base station panel antenna with upward coverage
A larger size means more antenna elements can be housed internally, resulting in a wider and farther radiating area and better directivity. Compatible with multiple different frequency bands Connector type, frequency band, size, gain, and mounting method can be customized according to different application scenarios.
Dual-Band High-Performance Design – Covers 2400–2500 MHz (Wi-Fi/ISM) and 5150–5900 MHz (5.8G) bands with consistent 14±1 dBi gain for reliable, high-speed wireless communication. Optimized Beam for Upward Coverage – Features a 65±8° horizontal beamwidth and 32±5° vertical beamwidth, providing wide yet focused signal projection ideal for ground-to-air or elevated link scenarios. Robust Outdoor Construction – Built with a UPVC radome and designed for harsh environments, operating from -40℃ to +85℃ with 5–95% humidity tolerance. High-Power and Protected Operation – Supports 100W input power and includes DC ground lightning protection, ensuring durability and safety in permanent outdoor installations. Fully Customizable Configuration – Offers tailored options for connectors, frequency bands, dimensions, gain, and mounting methods to meet specific project requirements.
Dual-Band High-Performance Design – Covers 2400–2500 MHz (Wi-Fi/ISM) and 5150–5900 MHz (5.8G) bands with consistent 14±1 dBi gain for reliable, high-speed wireless communication. Optimized Beam for Upward Coverage – Features a 65±8° horizontal beamwidth and 32±5° vertical beamwidth, providing wide yet focused signal projection ideal for ground-to-air or elevated link scenarios. Robust Outdoor Construction – Built with a UPVC radome and designed for harsh environments, operating from -40℃ to +85℃ with 5–95% humidity tolerance. High-Power and Protected Operation – Supports 100W input power and includes DC ground lightning protection, ensuring durability and safety in permanent outdoor installations. Fully Customizable Configuration – Offers tailored options for connectors, frequency bands, dimensions, gain, and mounting methods to meet specific project requirements.
Wireless backhaul and point-to-point communication links UAV (drone) command and control (C2) data links Outdoor Wi-Fi extension and broadband access in remote areas Telemetry and data transmission for industrial and scientific applications Custom communication setups in defense, surveillance, and research
Wireless backhaul and point-to-point communication links UAV (drone) command and control (C2) data links Outdoor Wi-Fi extension and broadband access in remote areas Telemetry and data transmission for industrial and scientific applications Custom communication setups in defense, surveillance, and research
Q1: What frequency bands does the GL2458G14 support? A: It supports 2400–2500 MHz and 5150–5900 MHz. Q2: What is the gain of this antenna? A: The gain is 14±1 dBi across both frequency bands. Q3: How many connectors does it have and what type? A: It includes 2× N-Female connectors. Q4: Is this antenna suitable for outdoor use? A: Yes, it is designed for outdoor installation with wide temperature and humidity tolerance. Q5: Does it include lightning protection? A: Yes, it features DC ground lightning protection. Q6: What are the beamwidth specifications? A: Horizontal beamwidth is 65±8°, and vertical beamwidth is 32±5° for both bands.
Q1: What frequency bands does the GL2458G14 support? A: It supports 2400–2500 MHz and 5150–5900 MHz. Q2: What is the gain of this antenna? A: The gain is 14±1 dBi across both frequency bands. Q3: How many connectors does it have and what type? A: It includes 2× N-Female connectors. Q4: Is this antenna suitable for outdoor use? A: Yes, it is designed for outdoor installation with wide temperature and humidity tolerance. Q5: Does it include lightning protection? A: Yes, it features DC ground lightning protection. Q6: What are the beamwidth specifications? A: Horizontal beamwidth is 65±8°, and vertical beamwidth is 32±5° for both bands.
