English

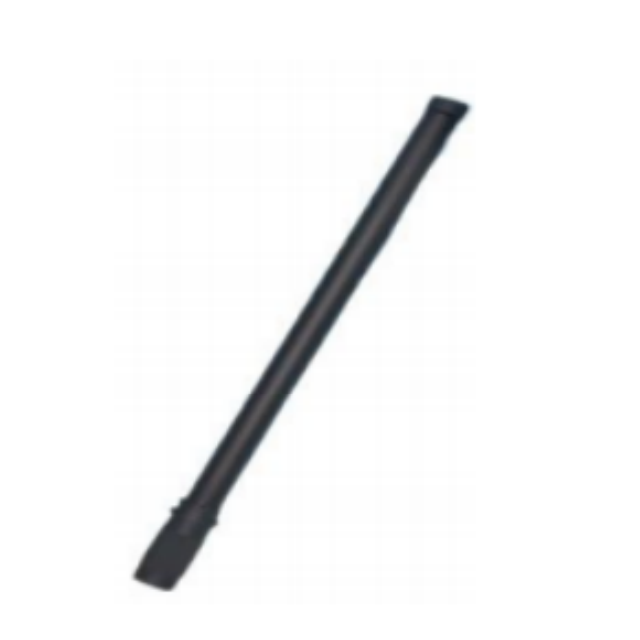

GL433M3
Asialeren
8517710000
10pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range (MHz) | 840-930 | ||
Horizontal beam width(°) | 360 | ||
Vertical beam width (°) | 55±10° | ||
Gain (dBi) | 3±1 | ||
VSWR | ≤1.5 | ||
Maximum input power (W) | 100 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | Ø25/32*600mm | ||
Antenna weight (Kg) | 0.2 | ||
Radome material | fiberglass | ||
Radome color | black | ||
Input connector type | N male | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Maximum wind speed (km/h) | 200 | ||
Product Introduction
840-930MHz Wide Frequency Coverage
Covers the core 840-930MHz band, perfectly compatible with IoT devices, base stations, and outdoor communication systems. Ensures stable signal transmission without frequency mismatch issues, meeting diverse wireless communication needs.
360° Omni-directional Signal Coverage
Boasts a 360° horizontal beam width and 55±10° vertical beam width, eliminating signal blind spots. Delivers uniform signal reception/transmission in all directions, ideal for scenarios requiring full-range coverage.
Anti-jamming & High Signal Stability
Features VSWR ≤1.5 and optimized impedance matching (50Ω), minimizing signal reflection and interference. Ensures clear, uninterrupted communication even in complex electromagnetic environments.
Durable Fiberglass Construction & Extreme Weather Resistance
Crafted with high-quality fiberglass radome, lightweight (0.2kg) yet robust. Withstands -40℃ to +70℃ temperatures, 5-95% humidity, and maximum wind speed of 200km/h, suitable for long-term outdoor use.
100W High Power Capacity & Universal N Male Connector
Supports up to 100W maximum input power, adapting to high-power communication devices. Equipped with industry-standard N male connector for easy plug-and-play, compatible with most wireless equipment.
Application Scenarios
Outdoor Base Stations：Ideal for 900MHz band outdoor base stations in rural or suburban areas, providing omni-directional signal coverage for mobile communication.
IoT Wireless Networks：Supports data transmission for outdoor IoT sensors (e.g., environmental monitoring, smart agriculture devices) with stable anti-jamming performance.
Emergency Communication Systems：Reliable for emergency rescue teams, maintaining communication during extreme weather (high winds, extreme temperatures) or complex electromagnetic environments.
Industrial Wireless Communication：Suitable for outdoor industrial sites (mines, construction sites) to connect wireless control devices, withstanding harsh working conditions.
Public Safety Communication：Used by police, fire, and security teams for outdoor on-site communication, ensuring 360° signal coverage and anti-jamming reliability.
FAQ
Q: Is GL900M9 an omni-directional antenna?
A: Yes, it has a 360° horizontal beam width, enabling full-range signal coverage.Q: What is the gain of GL900M9?
A: Its gain is 3±1dBi, balancing signal strength and coverage range.Q: What connector type does GL900M9 use?
A: It adopts an N male connector, widely compatible with most wireless communication equipment.Q: Can GL900M9 be used outdoors?
A: Yes, it is designed for outdoor use, with weatherproof fiberglass radome and extreme environment resistance.Q: What is the maximum input power of GL900M9?
A: It supports a maximum input power of 100W, suitable for high-power communication systems.
