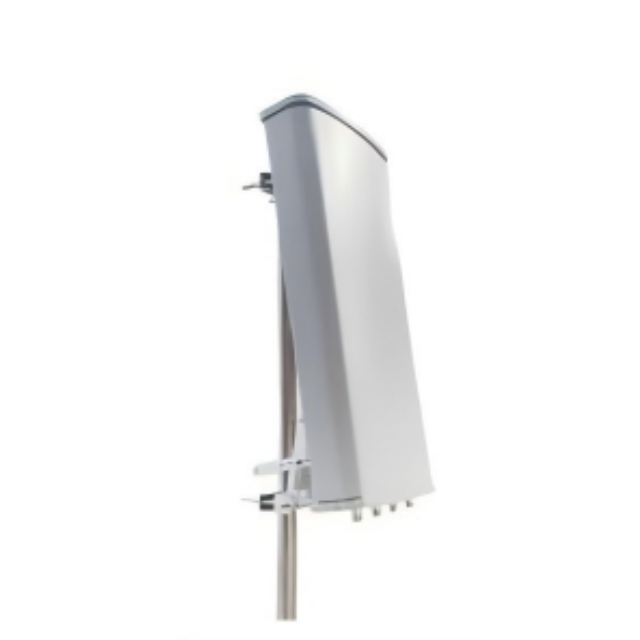

GL9058G15
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range | 806-960/1560-1620/24 00-2500/5725-5850 |
Gain (dBi) | 15 |
VSWR | ≤1.5/≤2.0 |
Front-to-back ratio- dB | ≥20 ≥22 |
Polarization | vertical |
Horizontal beam width(°) | 90±10 |
Vertical beam width (°) | 12±3 |
Maximum input power (W) | 100 |
Impedance (Ω) | 50 |
Lightning protection | DC Ground |
Mechanical Index | |
Dimensions (mm) | 1500*280*125mm |
Input connector type | 4*N-Female |
Radome material | UPVC |
Antenna weight-KGS | 2.6 |
Usage scenarios | outdoor |
Operating temperature (℃) | -40 ~ +85 |
Humidity range (%) | 5~95 |
