GL1558B3M4
Asialeren
8517710000
10pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||||
Frequency Range (MHZ) | 1560-1620 | 2400-2500 | 5640-5950 | |
Gain (dBi) | 14±1 | 14±1 | 14±1 | |
VSWR | ≤1.5 | ≤1.5 | ≤2.0 | |
Polarization | 2*vertical / 2*vertical + horizontal | |||
F/B Ratio | ≥15/≥20/≥23 | |||
Maximum input power (W) | 100 | |||
Impedance (Ω) | 50 | |||
Mechanical Specifications | ||||

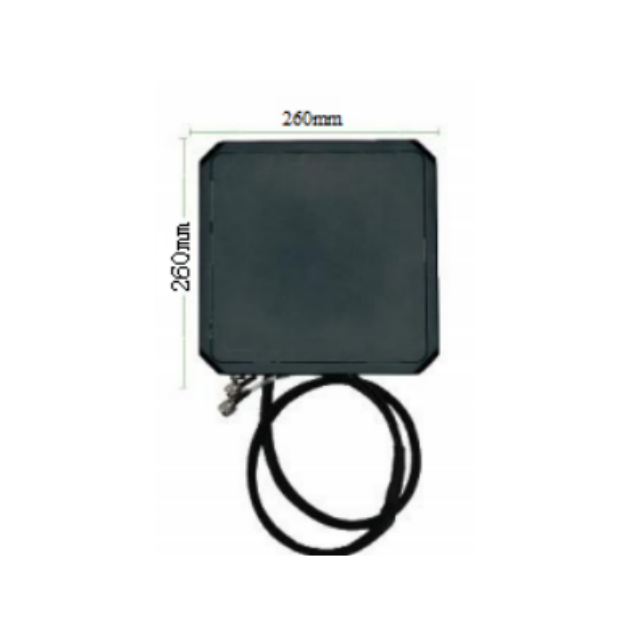

Dimensions (mm) | 260*260*45MM | |||
Antenna weight (Kg) | 1 | |||
Radome color | Black | |||
Input connector type | 4*N male | |||
Environmental indicators | ||||
Usage scenarios | Outdoor | |||
Operating temperature (℃) | -40 to +70 | |||
Humidity range (%) | 5 to 95 | |||
Product Introduction
Triple-Band Coverage – Supports 1560–1620 MHz, 2400–2500 MHz, and 5640–5950 MHz, ideal for multi-system jamming applications.
High Gain & Stable Performance – Provides 14 dBi gain per band with low VSWR (≤1.5/2.0) for strong, reliable signal transmission.
Compact & Durable Design – Lightweight (1 kg), slim profile (45 mm thick), and built for harsh outdoor environments (-40°C to +70°C).
Flexible Polarization Options – Supports both vertical and horizontal polarization for adaptable deployment in varied scenarios.
High Power Handling – Supports up to 100W input power, suitable for prolonged and intensive jamming operations.
Application Scenarios
GPS/L1/L2 and GLONASS signal jamming in secure facilities
Drone detection and neutralization systems
Wireless communication interference in military or law enforcement operations
Signal blocking in private or high-security events
Testing and training in electronic warfare simulations
FAQ
Q: What frequency bands does this antenna cover?
A: It covers 1560–1620 MHz, 2400–2500 MHz, and 5640–5950 MHz.
Q: What is the maximum input power supported?
A: The antenna can handle up to 100W input power.
Q: Is this antenna suitable for outdoor use?
A: Yes, it is designed for outdoor operations with an operating temperature range of -40°C to +70°C and humidity resistance up to 95%.
Q: What connectors are included?
A: It comes with 4 × N male connectors.
Q: Can it be used for drone jamming?
A: Yes, its frequency coverage includes bands commonly used by drones, making it suitable for counter-drone systems.
Q: What is the antenna weight?
A: It weighs only 1 kg, making it highly portable for handheld or mounted use.
Q: Does it support horizontal polarization?
A: Yes, it supports both vertical and horizontal polarization configurations.
