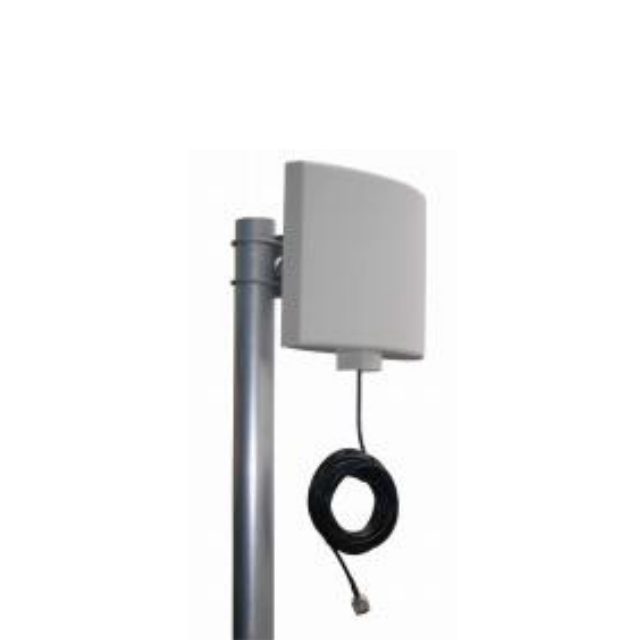

GLZ14PB5010C
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
| |
Frequency Range (MHz) | 1300-1500 |
Horizontal Half-power Beamwidth (°) | 55±5 |
Vertical Half-power Beamwidth (°) | 55±5 |
Gain (dBi) | 10±1 |
Polarization | Vertical |
VSWR | ≤1.5 |
Front to Back Ratio (dB) | ≥20 |
Average Power, Maximum (W) | 50 |
Impedance (Ω) | 50 |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Dimensions (mm) | 225×195×45 |
Net Weight (kg) | 1.0 |
Radome Material | ABS |
Radome Color | White |
Cable | RG58 0.55m |
Connector | SMA Male (1×) |
Environmental Specifications | |
Application | Outdoor |
Operating Temperature (℃) | -40 to +70 (-40 to 158℉) |
Humidity (%) | 5 to 95 |
Survival Wind Velocity (km/h) | 200 |
Mounting Specifications | |
MOUNTING BRACKETS ARE INCLUDED UNLESS OTHERWISE SPECIFIED | |
Mounting Mast Diameter (mm) | Φ 35 to 50 |
Mechanical Tilt Range (°) | 0 ~ 15 |
High Gain with Precise Sector Coverage
Boasting 10dBi gain and 55±5 degree horizontal/vertical beamwidth, this antenna delivers focused signal coverage in a specific sector, perfect for applications requiring targeted radiation patterns and enhanced signal strength.
Superior Electrical Performance
With VSWR ≤1.5 and a front-to-back ratio ≥20dB, it ensures minimal signal loss and excellent rejection of interference from the rear, providing stable and efficient transmission for critical communications.
Robust Outdoor Design
The white ABS radome offers durability against UV rays and corrosion. Rated for -40°C to +70°C operation and capable of withstanding 200 km/h winds, it includes DC ground lightning protection for enhanced reliability in harsh environments.
Easy Installation with Included Accessories
Mounting brackets are included, compatible with Φ35-50mm masts. The mechanical tilt range of 0-15 degrees allows for flexible angle adjustment. The integrated 0.55m RGS8 cable with SMA male connector enables quick setup.
Optimized for 1.5GHz Professional Applications
Specifically designed for the 1300-1500MHz band, it is ideal for point-to-point/multipoint links, fixed wireless access (FWA), and professional wireless systems requiring reliable, high-performance sector coverage.
Fixed Wireless Access (FWA): Serves as a base station sector antenna to provide broadband connectivity in specific areas.
Point-to-Point/Multipoint Communication: Establishes reliable data links for enterprise or campus networks.
Wireless Video Surveillance: Provides stable backhaul for high-definition security cameras in urban or industrial settings.
Private Network Coverage: Used in government, utility, or public safety networks for dedicated communication sectors.
Rural/Remote Area Connectivity: An effective solution for extending network coverage to underserved regions with targeted sector beams.
Q:What is the frequency range of the GLZ14PB5010C antenna?
A:It operates in the 1300-1500MHz frequency range, making it suitable for various professional wireless systems in the 1.5GHz band.
Q:What is the gain and beamwidth of this antenna?
A:The antenna offers 10dBi gain with both horizontal and vertical half-power beamwidth of 55±5 degrees, providing precise sector coverage.
Q:Is this antenna suitable for outdoor installation?
A:Yes, it is designed for outdoor use with an ABS radome, wide operating temperature range (-40°C to +70°C), and survival wind speed of 200 km/h.
Q:Does the antenna come with mounting hardware?
A:Yes, mounting brackets are included, suitable for masts with diameters of Φ35-50mm, and allow for 0-15 degrees of mechanical tilt.
Q:What type of connector does it have?
A:It comes with a pre-connected 0.55m RGS8 cable terminated with an SMA male connector.
Q:What lightning protection does it offer?
A:The antenna features DC ground lightning protection, providing a direct ground path to safeguard connected equipment.
Q:What is the maximum power it can handle?
A:The maximum average input power is 50 watts.
| |
