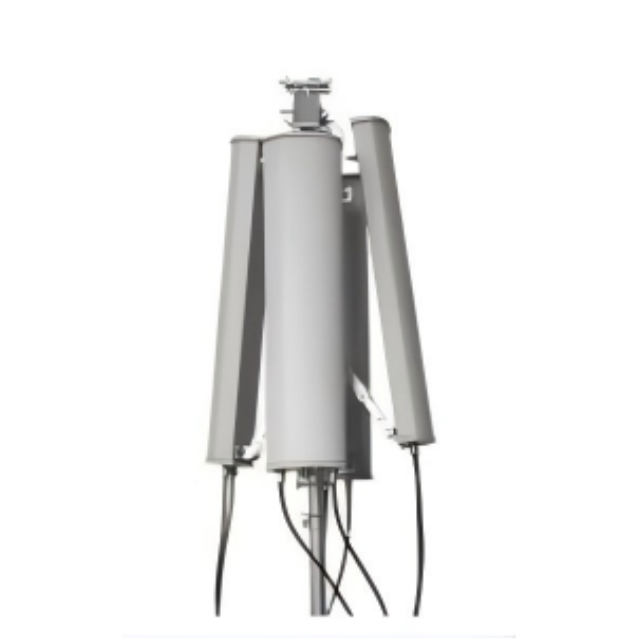

GL9012G10
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||
Frequency Range | 850-920 | 1200-1280 |
Gain (dBi) | 10±1 | 10±1 |
VSWR | ≤1.5 | |
Front-to-back ratio- dB | ≥23 | |
Polarization | vertical | |
Horizontal beam width(°) | 65±8 | |
Vertical beam width (°) | 32±5/32±5/16±5 | |
Maximum input power (W) | 100 | |
Impedance (Ω) | 50 | |
Lightning protection | DC Ground | |
Mechanical Index | ||
Dimensions (mm) | 750*160*80mm | |
Input connector type | 2*N-Female | |
Radome material | UPVC | |
Antenna weight-KGS | 2.5 | |
Usage scenarios | outdoor | |
Operating temperature (℃) | -40 ~ +85 | |
Humidity range (%) | 5~95 | |
