GL1200HB
GLOBAL
8517710000
10PC
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

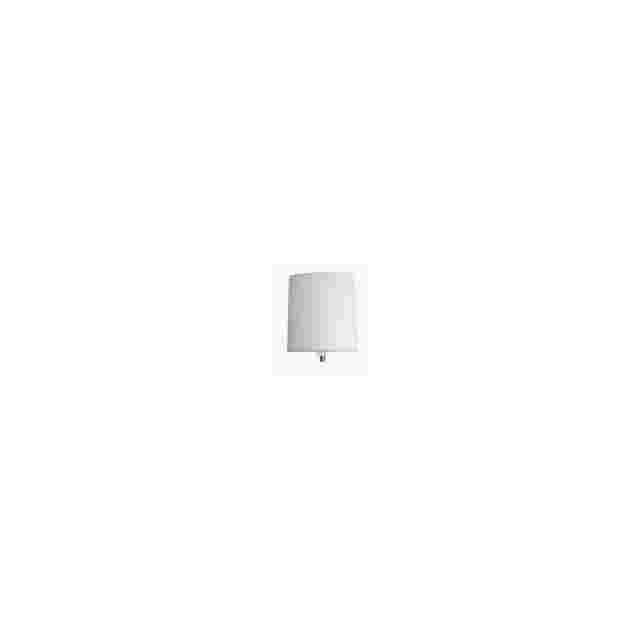

Item | Panel Antenna |
PN | GL1200HB |
Frequency(Mhz) | 1000-1200 |
Bandwidth(MHz) | 200 |
Gain(dBi) | 12 |
Vertical Beamwidth(°) | 12 |
Horizontal Beamwidth(°) | 45 |
F/B Ratio(dB) | ≥25 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 100 |
Dimensions(mm) | 220*190*50 |
Weight(kg) | 1.5 |
Connector | N female |
Rated Wind Velocity(m/s) | 60 |
Mounting Mast Diameter(mm) | φ35-50 |
Item | Panel Antenna |
PN | GL1200HB |
Frequency(Mhz) | 1000-1200 |
Bandwidth(MHz) | 200 |
Gain(dBi) | 12 |
Vertical Beamwidth(°) | 12 |
Horizontal Beamwidth(°) | 45 |
F/B Ratio(dB) | ≥25 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 100 |
Dimensions(mm) | 220*190*50 |
Weight(kg) | 1.5 |
Connector | N female |
Rated Wind Velocity(m/s) | 60 |
Mounting Mast Diameter(mm) | φ35-50 |
