GL-120401
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Product No. | 181A-7661 | 181A-7662 |
Product type | SMA-JB0.7 | SMA-JB1 |
Apply cable | .034 | .047 |

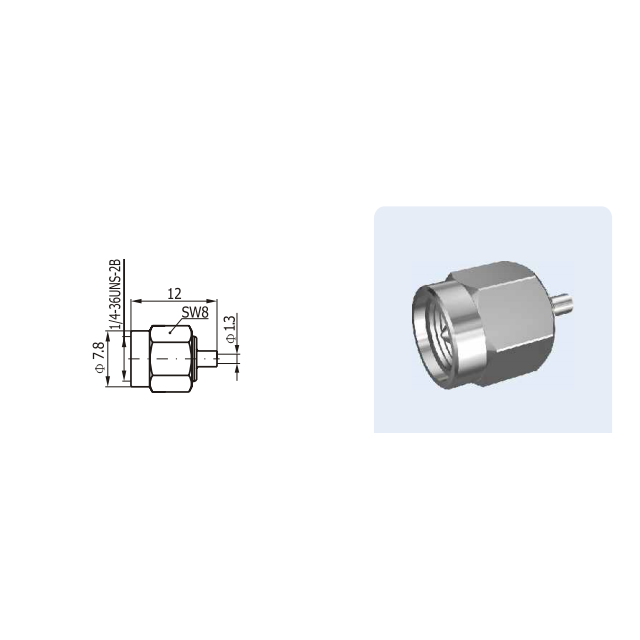

Deminsions-mm | Ø7.8*12
| |
Temperature Range | -65 ~ +165 ℃ | |
Characteristic Impedance | 50 Ω | |
Frequency Range | 0~18GHz | |
VSWR | ≤1.05+0.02F | |
Insulation Resistance | > 5000 MΩ | |
Dielectric Withstanding Voltage | 1000 V (rms) | |
Contact Resistance | Center conductor: < 3 mΩ, Outer conductor: < 2 mΩ | |
Durability | 500 cycles | |
MATERIAL AND PLATING | ||
Body | Brass, gold plated or Stainless steel, passivated | |
Male Center Contacts | Brass, gold plated | |
Female Center Contacts | Beryllium copper, gold plated | |
Insulators | PTFE | |
Gaskets | Silicon rubber | |
Crimp Ferrules | Copper alloy, silver or gold plated | |
