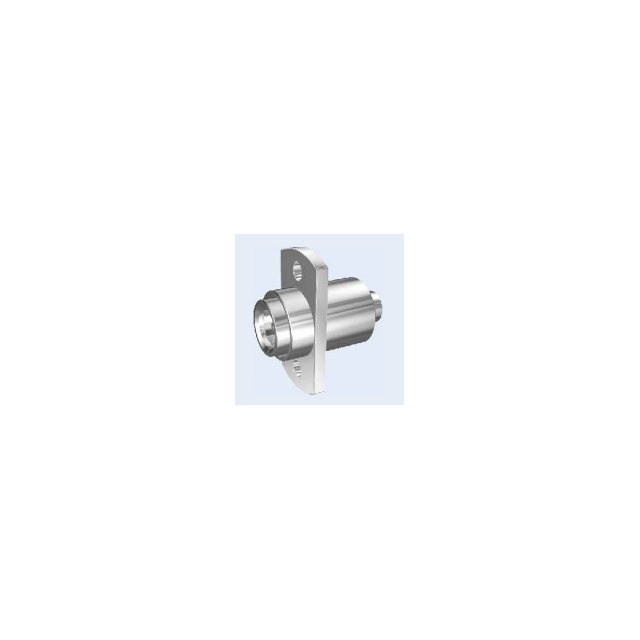

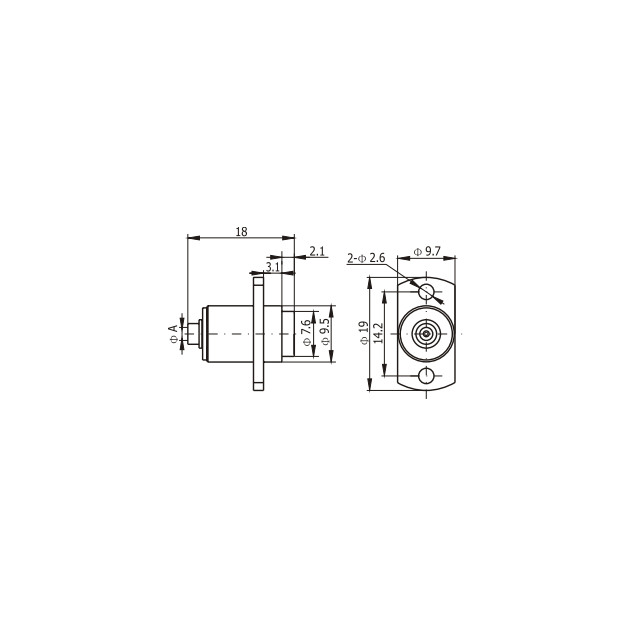

Straight Flange Mount BMA type Cable Plugs

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Frequency Range(GHz)	0-4
Characteristic impedance(ohm)	50
Max power (W)	50
VSWR	≤1.30
Insulation resistance	>5000MΩ
Dielectric Withstanding voltage	750V(rms)
Contact resistance	Center conductor	≤3mΩ
	Outer conductor	≤2mΩ
Connector	BMA
Cable	086/141
MATERIAL AND PLATING
Lighting protection	DC grounding
Body	stainless steel passivated
Male center contacts	Brass,gold plated
Female center contacts	gold plated
Insulators	PTFE
Crimp ferrules	copper alloy,nickel plated
Temperature range	-65~+125℃
