GL-120403
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Product No. | 181A-7665 |
Product type | SMA-JB3A |
Apply cable | .141 |

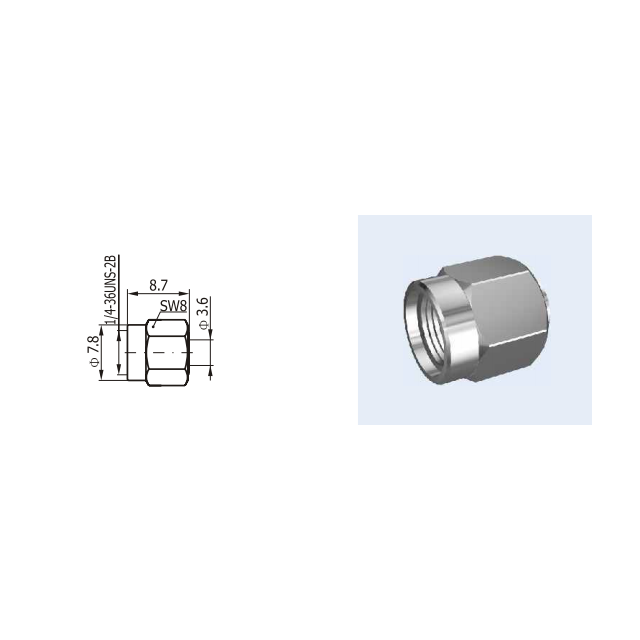

Deminsions-mm | Ø7.8*8.7
|
Temperature Range | -65 ~ +165 ℃ |
Characteristic Impedance | 50 Ω |
Frequency Range | 0~18GHz |
VSWR | ≤1.05+0.02F |
Insulation Resistance | > 5000 MΩ |
Dielectric Withstanding Voltage | 1000 V (rms) |
Contact Resistance | Center conductor: < 3 mΩ, Outer conductor: < 2 mΩ |
Durability | 500 cycles |
MATERIAL AND PLATING | |
Body | Brass, gold plated or Stainless steel, passivated |
Male Center Contacts | Brass, gold plated |
Female Center Contacts | Beryllium copper, gold plated |
Insulators | PTFE |
Gaskets | Silicon rubber |
Crimp Ferrules | Copper alloy, silver or gold plated |
