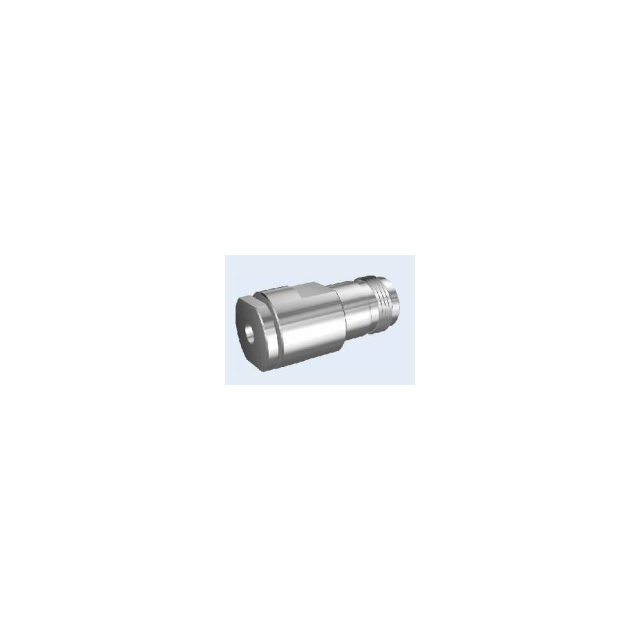

N-Type Straight Cable Jack 0-11GHz 50Ω Gold Plated

GLN16 N-Type Straight Cable Jack, DC-11GHz, 50Ω, VSWR≤1.3, gold-plated contacts, PTFE insulator, 500 cycles, for 7/50S+D cable. Ideal for high-frequency RF applications.

Model:
GLN16
Brand:
GLOBAL
Code:
8517710000
MOQ:
100pc
OEM&ODM:
Accepted
Capacity:
10000PC/Day
Download:
GLN16.pdf

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Product Introduction

Frequency Range(GHz)	0-11
Characteristic impedance(ohm)	50
VSWR	≤1.3
Insulation resistance	≥5000MΩ
Dielectric Withstanding voltage	1500V(rms)
Contact resistance	Center conductor	≤1mΩ
	Outer conductor	≤0.2mΩ
Connector	N
Length(mm)	Ф18.7*39
Apply cable	7/50S+D
Durability	500 Cycles
MATERIAL AND PLATING
Body	Brass,nickel/gold plated
Male center contacts	Brass,gold plated
Female center contacts	Beryllium copper,gold plated
Insulators	PTFE
Crimp ferrules	copper alloy,nickel plated
Gaskets	Silicone rubber
Temperature range	-40~+90℃

Product Introduction

Wide Frequency Range – Supports DC to 11 GHz, suitable for demanding RF, microwave, and telecom applications.
Ultra-Low VSWR ≤1.3 – Ensures excellent impedance matching and minimal signal reflection across the entire band.
Superior Contact Resistance – Center conductor ≤1mΩ, outer conductor ≤0.2mΩ for high signal integrity and low loss.
Robust Construction – Brass body with nickel/gold plating, gold-plated contacts, and PTFE insulator guarantee durability and corrosion resistance.
High Reliability – Rated for 500 mating cycles and operates from -40°C to +90°C, with silicone rubber gaskets for environmental sealing.

Application Scenarios

Telecommunications Infrastructure – Used in base stations, antennas, and RF distribution systems.
Test and Measurement – Ideal for connecting spectrum analyzers, signal generators, and network analyzers.
Wireless Backhaul – Suitable for microwave links and point-to-point communication systems.
Broadcast Equipment – Employed in transmitters, combiners, and RF amplifiers.
Industrial RF Systems – Used in radar, medical devices, and industrial heating equipment requiring reliable N-type connections.

FAQ

Q: What is the frequency range of the GLN16?
A: It operates from DC to 11 GHz.

Q: What is the VSWR specification?
A: VSWR is ≤1.3 across the entire frequency range.

Q: What type of cable is this connector compatible with?
A: It is designed for 7/50S+D cable (a common low-loss RF cable type).

Q: What materials are used in this connector?
A: Body is brass with nickel/gold plating, center contacts are gold-plated brass (male) or beryllium copper (female), insulators are PTFE, and crimp ferrules are nickel-plated copper alloy.

Q: How many mating cycles can it withstand?
A: It is rated for 500 cycles of durability.

Q: What is the temperature range for operation?
A: It operates reliably from -40°C to +90°C.
