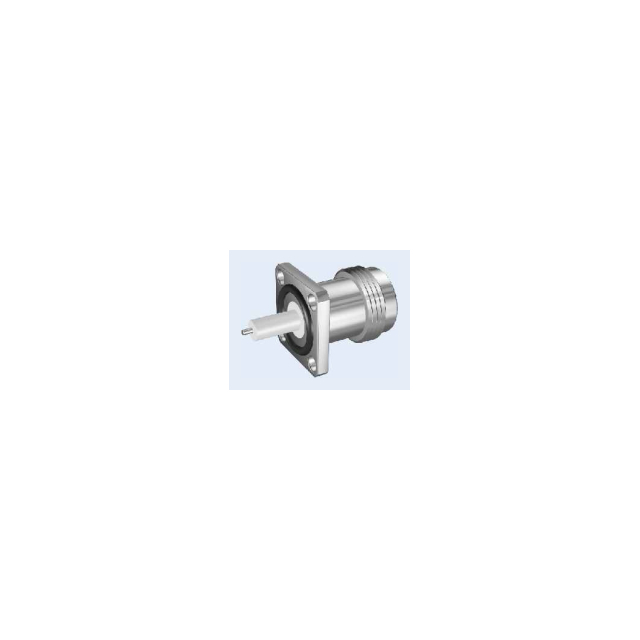

N-Type Flange Mount Straight connector

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Frequency Range(GHz)	0-11
Characteristic impedance(ohm)	50
VSWR	≤1.3
Insulation resistance	≥5000MΩ
Dielectric Withstanding voltage	1500V(rms)
Contact resistance	Center conductor	≤1mΩ
	Outer conductor	≤0.2mΩ
Connector	N
Length(mm)	Ф4.1*31.4
Durability	500 Cycles
MATERIAL AND PLATING
Body	Brass,nickel/gold plated
Male center contacts	Brass,gold plated
Female center contacts	Beryllium copper,gold plated
Insulators	PTFE
Crimp ferrules	copper alloy,nickel plated
Gaskets	Silicone rubber
Temperature range	-40~+90℃
