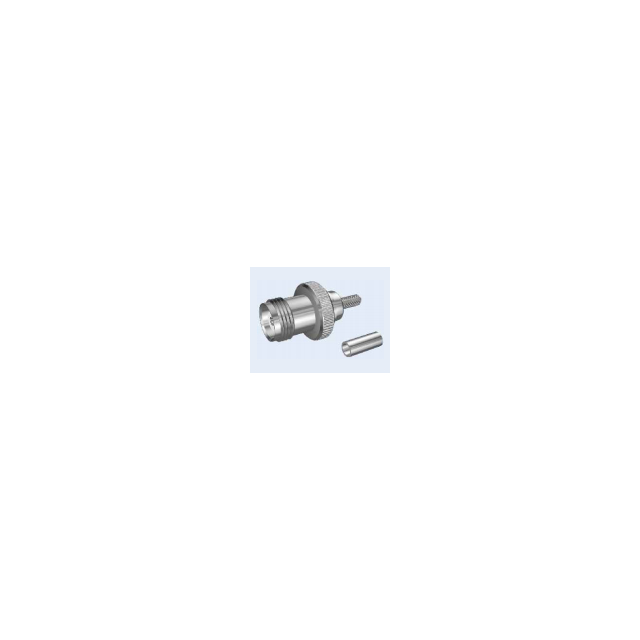

Length(mm) Ф5.2*36 Straight Cable Jack

Length(mm) Ф5.2*36 Straight Cable Jack

  • GLTNC1611

  • GLOBAL

  • 8517710000

  • 1000PC/Day

  • 10pc

  • Accepted

Availability:
Quantity:
Inquiry Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

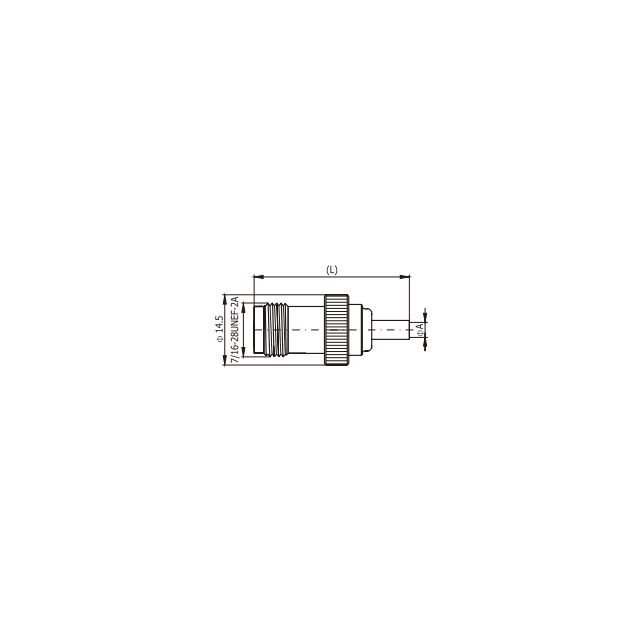

Frequency Range(GHz) 0-11 Characteristic impedance(ohm) 50Ω VSWR ≤1.3 Insulation resistance ≥5000MΩ Dielectric Withstanding voltage 1500V(rms) Contact resistance Center conductor ≤1.5mΩ Outer conductor ≤0.2mΩ Connector TNC Apply cable 5/50S 5/50D Length(mm) Ф5.2*36(A=5.2 L=36)/Ф5.7*37.5(A=5.7 L=37.5) Durability 500 Cycles MATERIAL AND PLATING Body Brass,nickel plated Male center contacts Brass,gold plated Female center contacts Beryllium copper,gold plated Insulators PTFE Crimp ferrules copper alloy,nickel plated Gaskets Silicone rubber Temperature range -65~+165℃
Length(mm) Ф5.2*36 Straight Cable Jack
