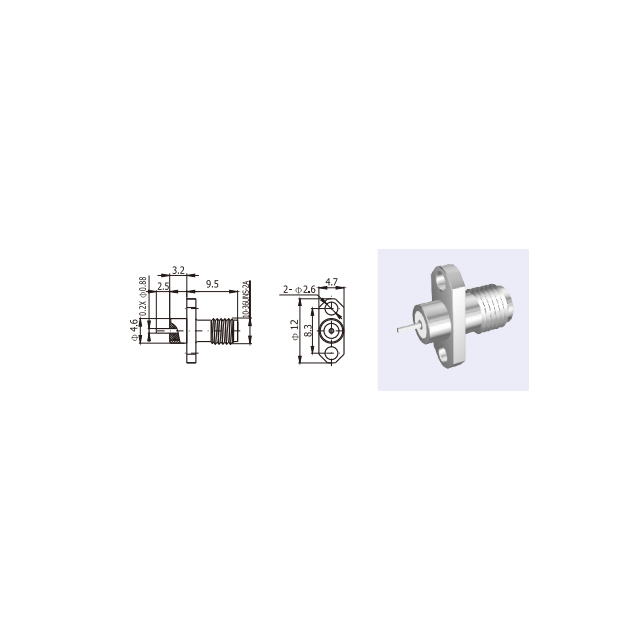

GLSSMA1659
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 0-35 | |
Characteristic impedance(ohm) | 50Ω | |
VSWR | ≤1.07+0.01f | |
Insulation resistance | ≥1000MΩ | |
Dielectric Withstanding voltage | 750V(rms) | |
Contact resistance | Center conductor | ≤4mΩ |
Outer conductor | ≤2.5mΩ | |
Connector | SSMA | |
Length(mm) | Ф4.6*9.5 | |
Durability | 500 Cycles | |
MATERIAL AND PLATING | ||
Body | Brass,gold plated | |
Male center contacts | Brass,gold plated | |
Female center contacts | Beryllium copper ,gold plated | |
Insulators | PTFE | |
Crimp ferrules | Copper alloy,nickel or gold plated | |
Temperature range | -55~+155℃ | |
