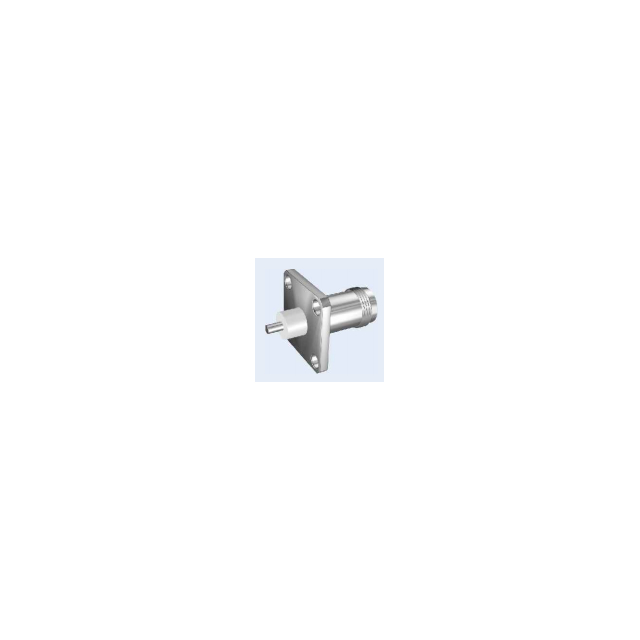

Length(mm) Ф4.1*25 Straight Flange Jack

Model:
GLTNC1621
Brand:
GLOBAL
Code:
8517710000
Capacity:
1000PC/Day
MOQ:
10pc
OEM&ODM:
Accepted

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Product Introduction

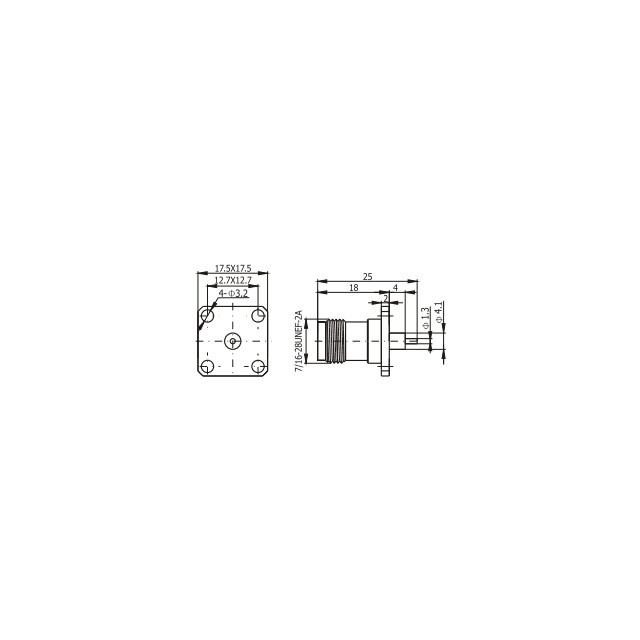

Frequency Range(GHz) 0-11 Characteristic impedance(ohm) 50Ω VSWR ≤1.3 Insulation resistance ≥5000MΩ Dielectric Withstanding voltage 1500V(rms) Contact resistance Center conductor ≤1.5mΩ Outer conductor ≤0.2mΩ Connector TNC Length(mm) Ф4.1*25 Durability 500 Cycles MATERIAL AND PLATING Body Brass,nickel plated Male center contacts Brass,gold plated Female center contacts Beryllium copper,gold plated Insulators PTFE Crimp ferrules copper alloy,nickel plated Gaskets Silicone rubber Temperature range -65~+165℃
