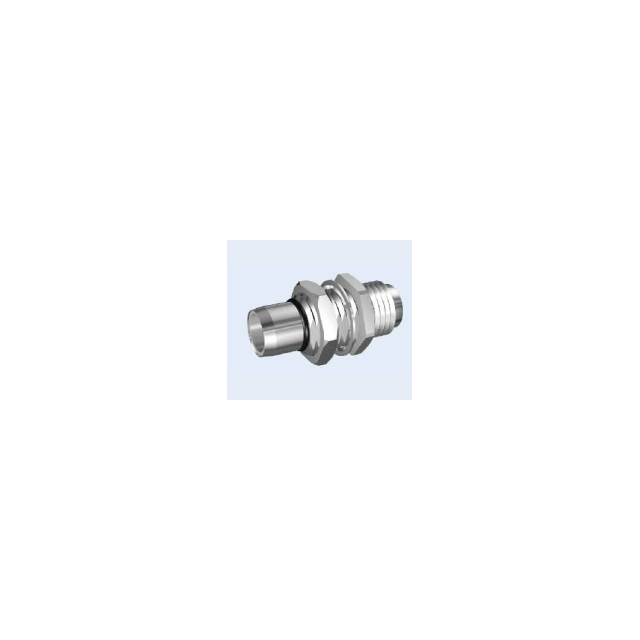

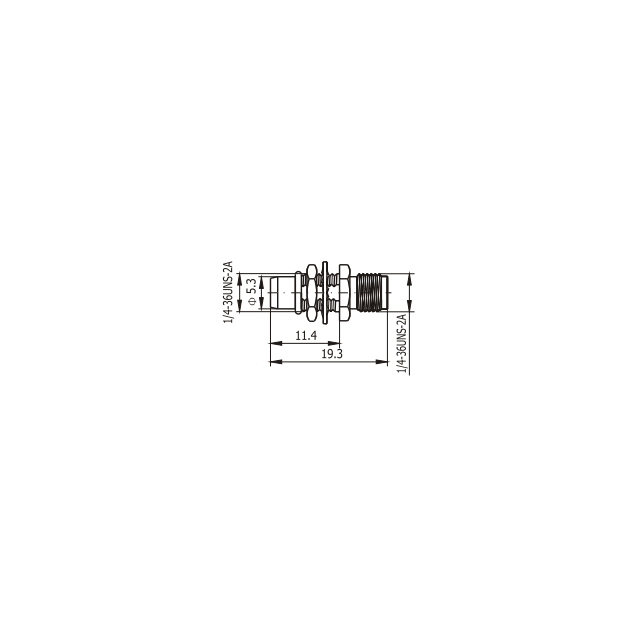

GLB18BMA
GLOBAL
8517710000
100pc
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 0-3 | |
Characteristic impedance(ohm) | 50 | |
Max power (W) | 50 | |
VSWR | ≤1.30 | |
Insulation resistance | >5000MΩ | |
Dielectric Withstanding voltage | 750V(rms) | |
Contact resistance | Center conductor | ≤3mΩ |
Outer conductor | ≤2mΩ | |
Connector | BMA | |
MATERIAL AND PLATING | ||
Lighting protection | DC grounding | |
Body | stainless steel passivated | |
Male center contacts | Brass,gold plated | |
Female center contacts | Beryllium copper ,gold plated | |
Insulators | PTFE | |
Crimp ferrules | copper alloy,nickel plated | |
Temperature range | -65~+125℃ | |
