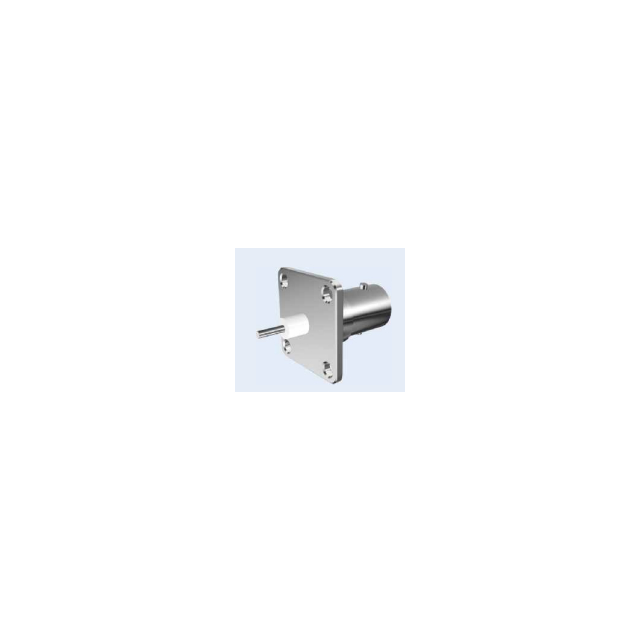

GLBNC-KF1
GLOBAL
8517710000
100pc
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 0-3 | |
Characteristic impedance(ohm) | 50 | |
VSWR | ≤1.30 | |
Insulation resistance | ≥5000MΩ | |
Dielectric Withstanding voltage | 1500V(rms) | |
Disengage force | ≥0.6N | |
Contact resistance | Center conductor | ≤1.5mΩ |
Outer conductor | ≤1mΩ | |
Connector | BNC | |
Durability | 500 Cycles | |
MATERIAL AND PLATING | ||
Lighting protection | DC grounding | |
Body | Brass,nickel plated | |
Male center contacts | Brass,gold plated | |
Female center contacts | Beryllium copper or phosphor bronze ,gold plated | |
Insulators | PTFE | |
Crimp ferrules | copper alloy,nickel plated | |
Temperature range | -65~+165℃ | |
