You are here: Home / Products / Coaxial Cables & Connectors / 8GHz 1.10VSWR SMB Connector

8GHz 1.10VSWR SMB Connector

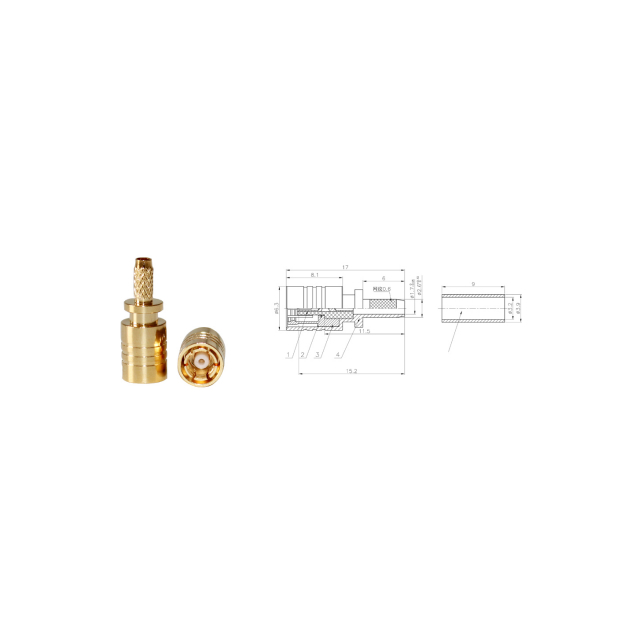

The GL-SMBK1.5 SMB Type Connector features 8GHz frequency, 50Ω impedance, and 1.10 VSWR with ≤-160dBc PIM. It offers 500+ mating cycles, -55℃ to +155℃ operating range, and brass plating for consistent RF signal performance.

Model:
GL-SMBK1.5
Brand:
GLOBAL
Code:
8517710000
MOQ:
100PC
OEM&ODM:
Accepted
Capacity:
1000PC/Day

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Product Introduction

Frequency Range(GHz)	8
Impedance(ohm)	50
VSWR	1.10
Test voltage(max)	2500 V
PIM(3^rdorder)	≤-160 dBc @ 2 x 20 W
Mating Cycles	≥ 500
Coupling Torque	Max 1.7 Nm
Recommended Coupling Torque	0.7-1.1 Nm
Temperature Range	-55℃-+155℃
Outer Contact	Brass CuSnZn Plating
Center Contact	Brass Ag Plating
Cable Group	N/A
Plating	CuSnZn
Length(mm)	Ф6.3172.6
