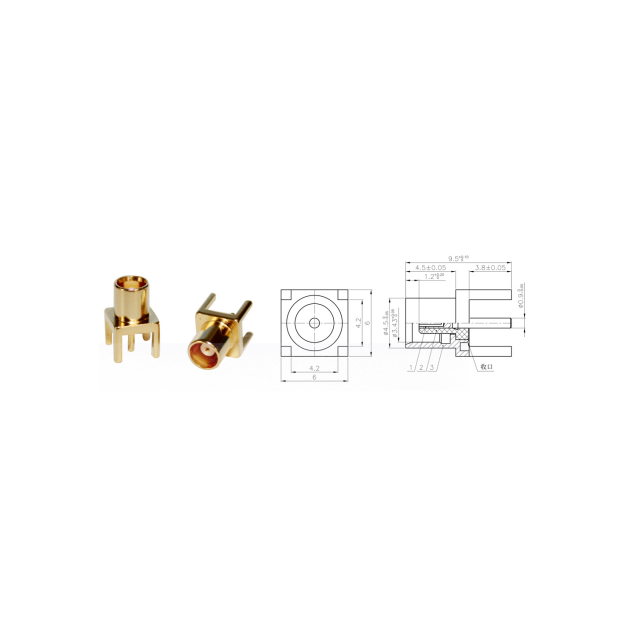

GL-MCXKE
GLOBAL
8517710000
100PC
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 7 |
Impedance(ohm) | 50 |
VSWR | 1.15 |
Test voltage(max) | 2500 V |
PIM(3rd order) | ≤-160 dBc @ 2 x 20 W |
Mating Cycles | ≥ 500 |
Coupling Torque | Max 1.7 Nm |
Recommended Coupling Torque | 0.7-1.1 Nm |
Temperature Range | -55℃-+155℃ |
Outer Contact | Brass CuSnZn Plating |
Center Contact | Brass Ag Plating |
Cable Group | N/A |
Plating | CuSnZn |
Length(mm) | Ф4.5*9.5*0.9 |
Frequency Range(GHz) | 7 |
Impedance(ohm) | 50 |
VSWR | 1.15 |
Test voltage(max) | 2500 V |
PIM(3rd order) | ≤-160 dBc @ 2 x 20 W |
Mating Cycles | ≥ 500 |
Coupling Torque | Max 1.7 Nm |
Recommended Coupling Torque | 0.7-1.1 Nm |
Temperature Range | -55℃-+155℃ |
Outer Contact | Brass CuSnZn Plating |
Center Contact | Brass Ag Plating |
Cable Group | N/A |
Plating | CuSnZn |
Length(mm) | Ф4.5*9.5*0.9 |
