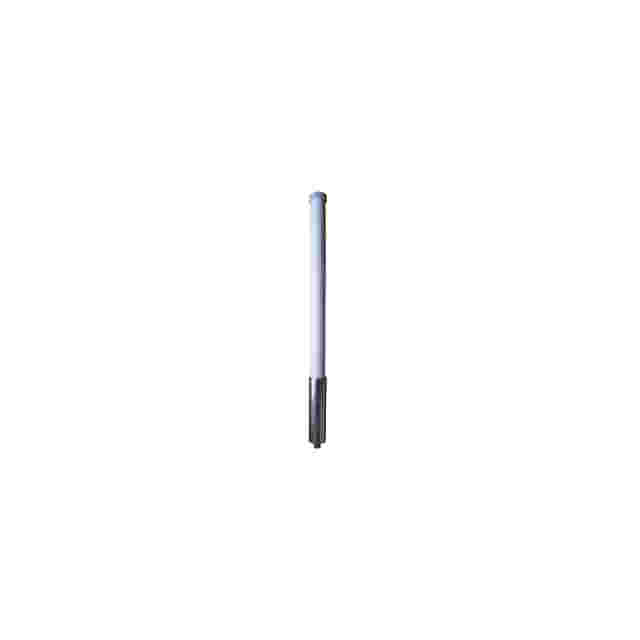

703-820MHz 5dBi Wide-Band High-Power Omnidirectional Fiberglass Antenna

Comprehensive all-around signal coverage eliminates blind zones, combined with 5dBi reliable gain and 200W high-power handling. Engineered for the 703-820MHz band, with flexible customization for connector, frequency and gain to adapt to diverse application demands.

  • GL700AG5

  • GLOBAL

  • 8517710000

  • 10PC

  • Accepted

  • 1000PC/Day

Availability:
Quantity:
Inquiry Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Item

Fiberglass Antenna

PN

GL700AG5

Frequency(Mhz)

703-820

Bandwidth(MHz)

117

Gain(dBi)

5

Vertical Beamwidth(°)

35

Horizontal Beamwidth(°)

360

VSWR

≤1.5

Nominal Impedance(Ω)

50

Polarization

Vertical

Maximum Power(W)

200

Dimensions(mm)

7500

Weight(kg)

1.2

Connector

N female or Customization

Leheng company

Fiberglass Antenna 703-820MHz Omnidirectional Antenna 5dBi Stable Gain Antenna
