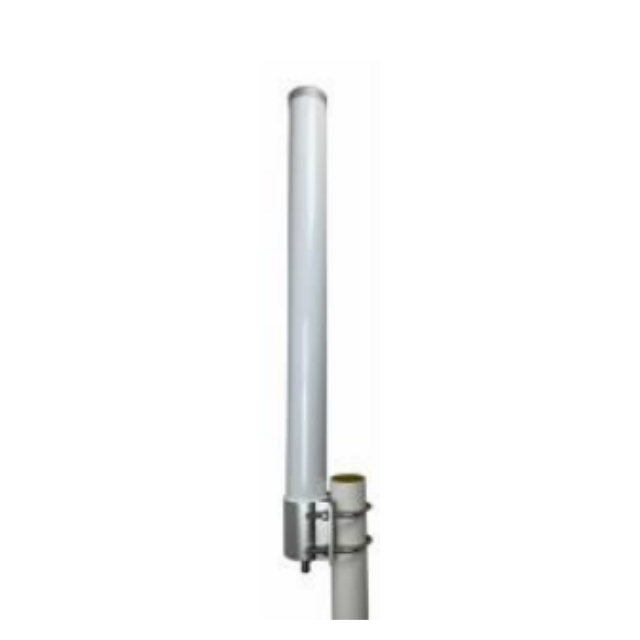

617–2700MHz 6dBi MIMO Omni Outdoor Antenna

Product Introduction

1. Wideband Frequency Coverage

Covering 617–960MHz and 1710–2700MHz, this antenna supports multiple wireless bands in a single design, reducing the need for multiple antennas.

2. 6dBi Omnidirectional MIMO Design

The 6dBi gain omnidirectional pattern provides 360° horizontal coverage, while 2× vertical polarization (MIMO) improves signal stability and data performance.

3. Reliable Outdoor Performance

Designed for outdoor use, the antenna operates reliably in temperatures from -40°C to +70°C, with humidity resistance up to 95% and wind survival up to 200 km/h.

4. Stable Electrical Characteristics

With VSWR ≤ 2.0, 50Ω impedance, and up to 50W average power handling, the antenna delivers consistent and dependable RF performance.

5. Easy Mast Mount Installation

Compatible with Φ50–90 mm mast diameters, the antenna includes mounting brackets for quick and secure outdoor installation.

Application scenarios

• Outdoor wireless communication systems

• Wide-area signal coverage for LTE and cellular networks

• MIMO antenna deployments for improved data performance

• Base station and outdoor network equipment

• Wireless infrastructure requiring wideband omni coverage

FAQ

Q: What frequency bands does this antenna support?

A: The antenna supports 617–960MHz and 1710–2700MHz, covering a wide range of cellular frequency bands.

Q: Is this antenna omnidirectional?

A: Yes, it provides 360-degree horizontal omnidirectional coverage.

Q: What is the gain of this antenna?

A: The antenna offers a 6dBi gain across both frequency ranges.

Q: Does this antenna support MIMO?

A: Yes, it features 2× vertical polarization, making it suitable for MIMO wireless systems.

Q: Is the antenna suitable for outdoor environments?

A: Yes, it is designed for outdoor use and withstands harsh weather conditions, including high wind speeds.

Q: What type of connector does the antenna use?

A: The antenna is equipped with an N female connector.
