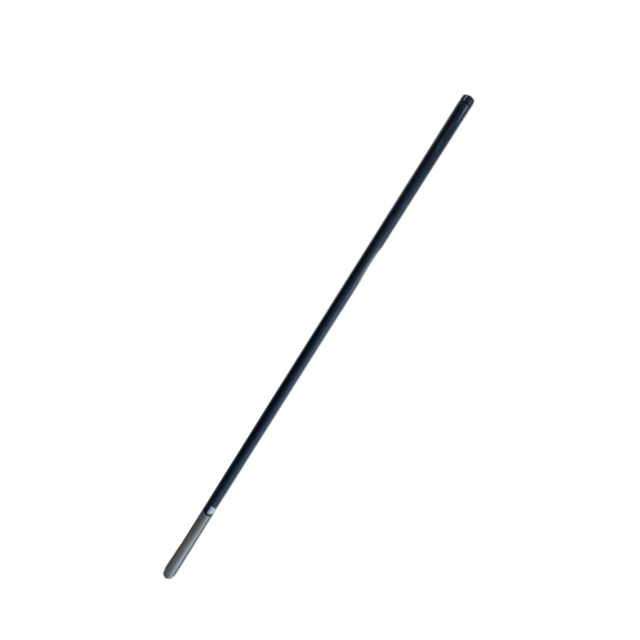

1200MHz Omni Fiberglass Antenna for outdoor use

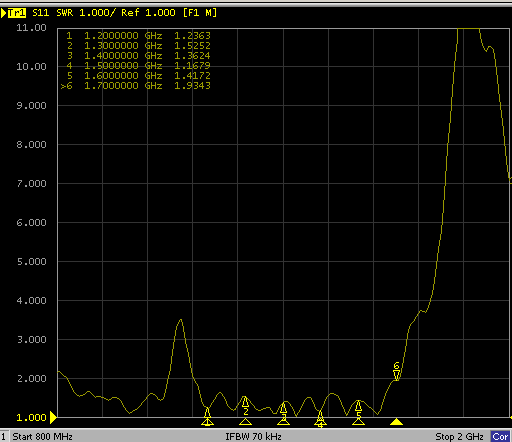

VSWR

Product introduction

1. Wide Frequency Range

Supports 1200-1400 MHz, suitable for a variety of wireless communication devices and applications.

2. High Gain Performance

Achieves a gain of 5.25-8.47dBi, optimizing signal transmission and reception for improved communication quality.

3. Robust and Durable Design

Fiberglass radome offers excellent resistance to harsh outdoor conditions, withstanding temperatures from -40°C to 60°C and high wind velocities up to 60 m/s.

4. Omni-Directional Coverage

Provides 360° horizontal beamwidth and 35° vertical beamwidth, ensuring reliable coverage in all directions.

5. Easy Installation

Equipped with an N male connector, the antenna can be easily mounted with hardware supporting diameters from 35mm to 50mm.

Application Scenarios

Mobile network infrastructure

IoT wireless communication systems

Outdoor public WiFi networks

Industrial control and monitoring systems

Remote communication devices

FAQ

Q:What is the frequency range of this antenna?

A:The antenna supports a frequency range of 1200–1400 MHz.

Q:What is the gain of the GL1200V8 antenna?

A:The antenna provides a gain ranging from 5.25 dBi to 8.47 dBi, depending on the frequency.

Q:Is this antenna suitable for outdoor use?

A:Yes, the fiberglass construction and weather-resistant materials make it ideal for outdoor environments.

Q:What type of connector does the antenna have?

A:The antenna is equipped with an N male connector.

Q: What is the maximum input power for this antenna?

A:The maximum input power is 50W.

Q:What is the operating temperature range?

A:The operating temperature range is from -40°C to 60°C.
