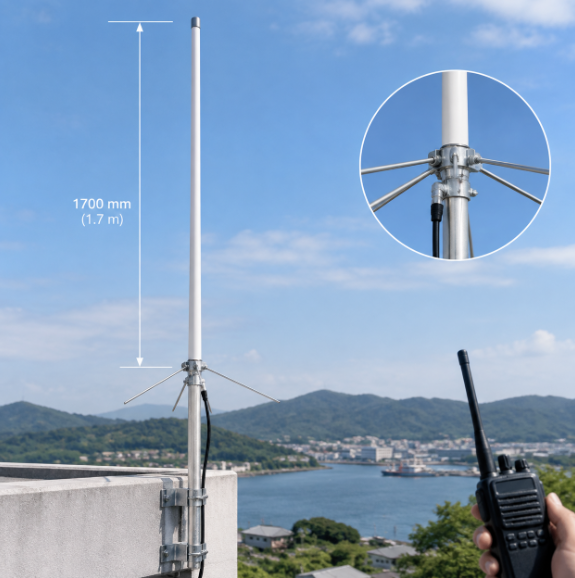

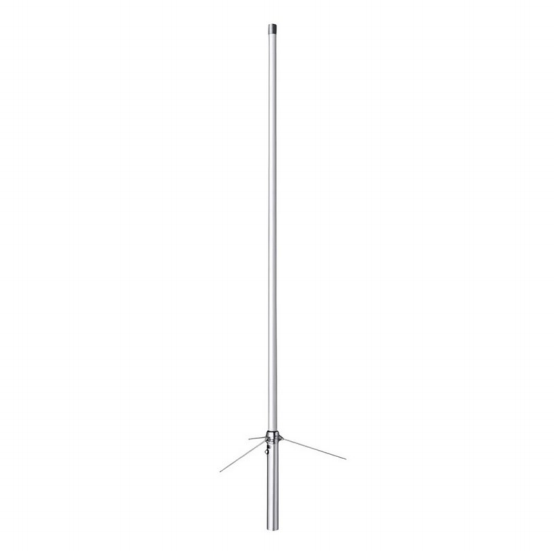

One-section 156–163MHz 3.8dBi Fiberglass Base Station Antenna

Product Introduction

1. Wideband VHF Coverage
   Covers 156–163MHz with 3.8dBi gain, providing broad omnidirectional coverage for VHF communication and fixed wireless applications.

2. Stable RF Performance
   With VSWR <1.5 and 50Ω impedance, the antenna provides efficient RF matching and consistent signal transmission across its operating range.

3. Omnidirectional & Vertical Polarization
   The omnidirectional radiation pattern provides 360° horizontal coverage, while vertical polarization supports consistent signal reception and transmission for fixed communication systems.

4. Durable Fiberglass & Copper Construction
   Built with a fiberglass and copper structure, the antenna is designed for long-term outdoor use while maintaining mechanical durability and RF performance.

5. Built for Demanding Outdoor Installations
   With a rated wind resistance of up to 60m/s and support for 30–62mm mounting poles, it offers a robust solution for base stations and other fixed outdoor communication deployments.

Application Scenarios

1. VHF Radio Dispatch Systems – Used at dispatch centers and fixed radio stations for two-way voice communication with mobile and handheld radios.

2. Marine Shore Stations – Installed at ports, marinas, and coastal facilities to provide VHF communication coverage for vessels operating in the surrounding area.

3. Emergency Communication Stations – Deployed at emergency command posts and fixed response stations to maintain VHF radio links with field teams.

4. Utility Field Communication – Installed at power, water, and other utility sites to communicate with maintenance crews and mobile radio terminals across large service areas.

5. Remote VHF Repeater Sites – Used at elevated or remote communication sites as an outdoor base antenna for extending two-way radio coverage over a wider area.
