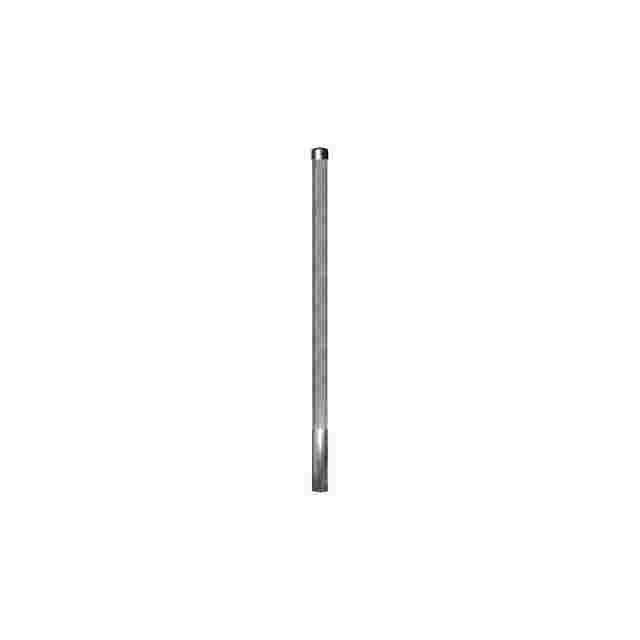

GL700A-A
GLOBAL
8517710000
10PC
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Item |
|
PN | GL700A-A |
Frequency(Mhz) | 690-800 |
Bandwidth(MHz) | 40 |
Gain(dBi) | 11 |
Vertical Beamwidth(°) | 10 |
Horizontal Beamwidth(°) | 360 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 100 |
Dimensions(mm) | 33000 |
Weight(kg) | 3.5 |
Connector | N female or Customization |
Item |
|
PN | GL700A-A |
Frequency(Mhz) | 690-800 |
Bandwidth(MHz) | 40 |
Gain(dBi) | 11 |
Vertical Beamwidth(°) | 10 |
Horizontal Beamwidth(°) | 360 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 100 |
Dimensions(mm) | 33000 |
Weight(kg) | 3.5 |
Connector | N female or Customization |
