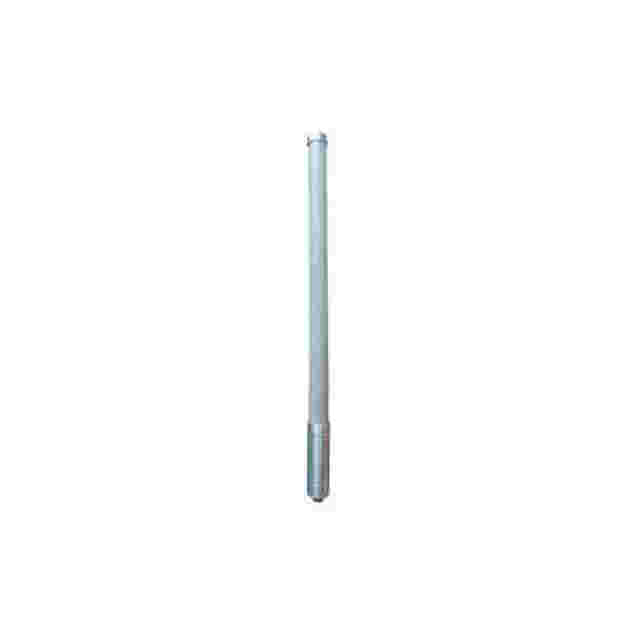

GL600R5
GLOBAL
8517710000
10PC
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Item |
|
PN | GL600R5 |
Frequency(Mhz) | 600-680 |
Bandwidth(MHz) | 80 |
Gain(dBi) | 5 |
Vertical Beamwidth(°) | 30 |
Horizontal Beamwidth(°) | 360 |
VSWR | ≤2.0 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 100 |
Dimensions(mm) | φ520*15900 |
Weight(kg) | 1.9 |
Connector | N female |
Item |
|
PN | GL600R5 |
Frequency(Mhz) | 600-680 |
Bandwidth(MHz) | 80 |
Gain(dBi) | 5 |
Vertical Beamwidth(°) | 30 |
Horizontal Beamwidth(°) | 360 |
VSWR | ≤2.0 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 100 |
Dimensions(mm) | φ520*15900 |
Weight(kg) | 1.9 |
Connector | N female |
