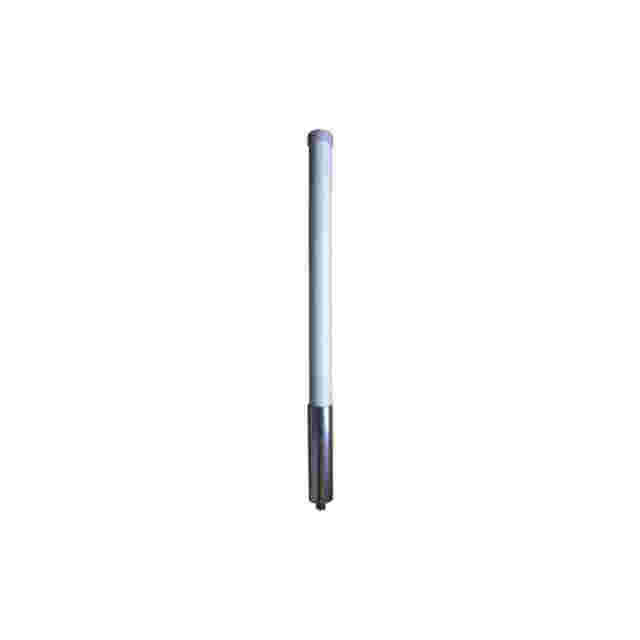

566-626MHz 7dBi High-Gain Omnidirectional Fiberglass Antenna

Consistent all-around signal coverage eradicates blind spots, complemented by 7dBi high gain and 100W power handling. Tailored for the 566-626MHz band, with customizable connector, frequency and gain to adapt to diverse application demands.

  • GL600G7F40

  • GLOBAL

  • 8517710000

  • 10PC

  • Accepted

  • 1000PC/Day

Availability:
Quantity:
Inquiry Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Item

Fiberglass Antenna

PN

GL600G7F40

Frequency(Mhz)

566-626

Bandwidth(MHz)

60

Gain(dBi)

7

Vertical Beamwidth(°)

20

Horizontal Beamwidth(°)

360

VSWR

≤1.5

Nominal Impedance(Ω)

50

Polarization

Vertical

Maximum Power(W)

100

Dimensions(mm)

φ430*18000

Weight(kg)

2.0

Connector

N female

Leheng company

Fiberglass Antenna 566-626MHz Fiberglass Antenna 7dBi Fiberglass Antenna
