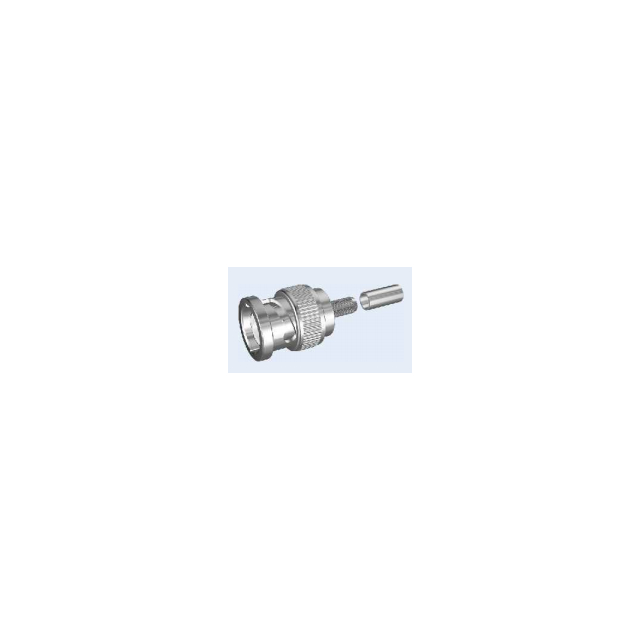

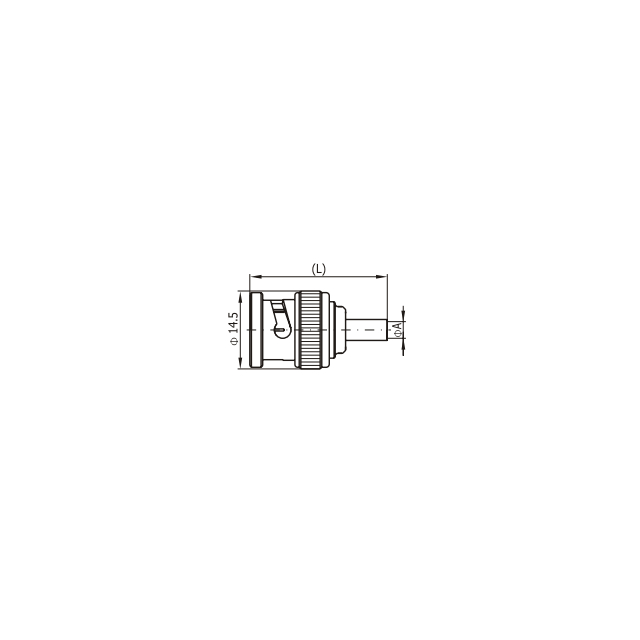

500 Cycles Durability Straight Cable Plugs

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Frequency Range(GHz)	0-2
Characteristic impedance(ohm)	50
VSWR	≤1.30
Insulation resistance	≥5000MΩ
Dielectric Withstanding voltage	1500V(rms)
Disengage force	≥0.6N
Contact resistance	Center conductor	≤1.5mΩ
	Outer conductor	≤1mΩ
Connector	BNC
Apply cable	5/50S/50D
Durability	500 Cycles
MATERIAL AND PLATING
Lighting protection	DC grounding
Body	Brass,nickel plated
Male center contacts	Brass,gold plated
Female center contacts	Beryllium copper or phosphor bronze ,gold plated
Insulators	PTFE
Crimp ferrules	copper alloy,nickel plated
Temperature range	-65~+165℃
