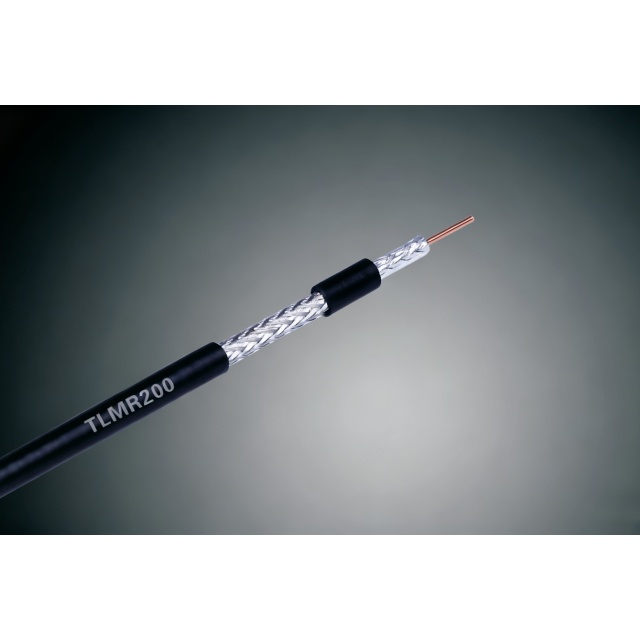

50Ω High-Speed Coaxial Cable

No

Material quality

Dimensions

1.Inner Conductor

Bare Copper

Φ1.12±0.02mm

2.Insulation

Foam FPE

Ф2.9±0.1mm

3.Outer Conductor

Dual AI Foil

Ф3.14±0.1mm

4.Braid

Tinned Copper or aluminum magnesium alloy braiding

Ф3.66±0.1mm

5.Jacket

PVC or PE

Φ4.95±0.1mm

Mechanical Characteristics and Electrical Performance Parameters

Impedance

50±2Ω

Capacitance

80.4±2PF/M

Velocity

83%

Peak Power

2.5KW

Inner Conductor Dc resistance

≥17.59ohms/1000m

Outer Conductor Dc resistance

≥16.8ohms/1000m

Cutoff Frequency

39GHz

Operating Temperature (℃)

-40~+85℃

VSWR

DC~6GHz

<1.25
